Mill type hydraulic cylinder for heavy-duty engineering applications in harsh environments
- BOS Hydraulics
- heavy duty hydraulic cylinder
Mill type hydraulic cylinders are made for tough engineering jobs in hard places. They are strong and have special seals. This helps them handle high pressure and big changes in temperature. Many industries use these strong hydraulic cylinders because they work well. Some common uses are:
Steel mills
Foundries
Mining operations
Oil and gas drilling
Industrial machinery
These hydraulic cylinders give steady power and last a long time in hard jobs.
Key Takeaways
Mill type hydraulic cylinders have a strong welded build. This makes them tougher and less likely to leak than tie-rod cylinders.
These cylinders use strong materials and special seals. They work well with high pressure and in tough places like steel mills and mines.
Special coatings and treatments protect the cylinders from rust and damage. This helps them last longer and lowers repair costs.
Picking the right cylinder size, pressure, and mounting style is important. It keeps heavy-duty jobs safe and working well.
Doing regular maintenance and getting expert help is important. It keeps mill type hydraulic cylinders working well and saves time and money.
Mill type hydraulic cylinder overview
Definition and design
A mill type hydraulic cylinder is easy to spot because it is very strong. It has a thick steel barrel and welded end caps, not tie rods. This makes it stronger and less likely to leak. The heavy-duty hydraulic cylinders use steel flanged end caps and thick steel tubes. These parts help them handle high pressure, sometimes up to 5000 PSI. That is more than many other hydraulic cylinders.
Mill-duty cylinders have bigger pistons and longer piston rod bearings. These help the cylinder last longer and work well with heavy loads. Special gland designs and two wiper systems keep out dirt and dust. This makes mill-type cylinders great for tough places. Many designs now have sensors and digital tools. These help check how the cylinder works and find problems early. Some new models use lighter materials like aluminum or carbon fiber. This makes them strong but not heavy.
Note: Mill-duty cylinders are often safer and work better than NFPA rules require. Their welded build and special mounting choices make them good for hard jobs.
Common applications

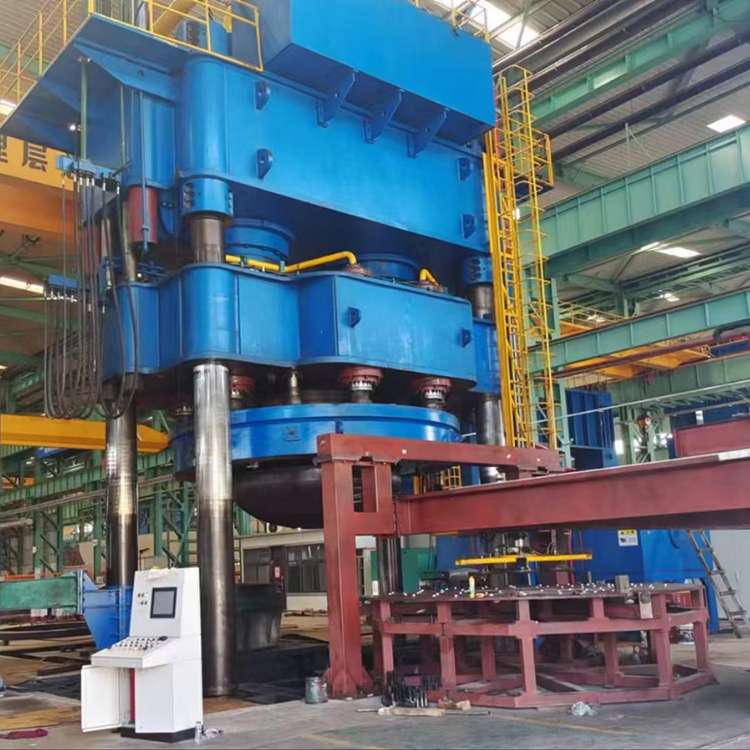

Mill type hydraulic cylinders are used in many tough jobs where strength is needed. Steel mills use them to move big rollers and presses. Mining uses mill-duty cylinders to crush and move rocks. Foundries use them to control large molds and casting machines.
Other heavy-duty hydraulic cylinders help oil and gas drilling rigs and big machines. These mill-type cylinders are also used in robots and aerospace equipment. They help with careful movement. Makers test mill-duty cylinders in labs to make sure they work in tough places. They check for pressure, seal strength, and if they can resist rust.
Testing Aspect | Description |
|---|---|
Performance Tests | They test how long the cylinder lasts and how it moves under pressure. |
Environmental Simulation | They spray salt, use climate rooms, and check seals. |
Standards and Quality | Tests follow ISO 9110 and ISO 4413 rules for safety and strength. |
Control and Monitoring | Sensors and software watch how the cylinder works in real time. |
Mill type hydraulic cylinder designs keep getting better. New things like digital tools and green fluids help them fit new industrial needs.
Mill-type cylinder vs. other designs
Durability and construction
Mill-type cylinders are very strong because of their thick housing and welded parts. The barrel and end caps are joined to make one solid piece. This makes them stronger than tie-rod hydraulic cylinders. Tie-rod cylinders use rods and nuts to hold parts together. These rods can bend or break if the load is too heavy. If this happens, leaks or failures can occur.
The table below shows how mill-type cylinders and tie-rod cylinders are different:
Feature | Tie-Rod Hydraulic Cylinders | Mill Type (Welded) Hydraulic Cylinders |
|---|---|---|
Construction | Barrel held by tie rods connecting end caps; threaded nuts secure assembly | One-piece barrel with end caps welded directly to barrel |
Durability | Tie rods can stretch or break under heavy loads, causing leaks and failures | Welded joints provide enhanced strength, rigidity, and superior durability |
Repairability | Easy to disassemble and repair with conventional tools | Difficult to repair due to welded joints requiring specialized equipment |
Design Footprint | Larger due to tie rods, nuts, and washers extending beyond end caps | Compact design limited to tube outer diameter, smaller footprint |
Cleanability | Debris can accumulate between tie rods and end caps | Smooth exterior, easier to clean |
Rod Mount | Standard threaded mounts that can unthread during operation | Options for welded rod mounts for increased durability |
Sensor Protection | External sensors threaded into end caps, vulnerable to damage | Embedded sensors protected inside cylinder body |
Port Location | Ports located in end caps at fixed positions | Ports can be freely located around the cylinder circumference |
Mill-type cylinders are smaller and have a smooth outside. This makes them easier to clean and keeps dirt away. Their strong build helps them work well under high pressure and in tough places. Mill-duty cylinders usually last longer and do better in hard jobs.
Performance in harsh environments
Mill-duty cylinders work great where there is a lot of dust, heat, or water. Their strong housing keeps the inside parts safe from harm. The welded or bolted barrel and end caps stop dirt from getting in and keep seals tight. Mill-type cylinders can handle up to 5,000 psi. This is good for steel mills, presses, and offshore work.
Special coatings like hard chrome and ceramic help protect the surface. These coatings stop rust and wear, so the cylinders last longer. Some rods have extra coatings like nitriding or marine-grade types. These stop pitting and scratching. These features help mill-duty cylinders last longer and work better.
Mill-duty cylinders also have sensors inside them. These sensors are safe from dust and bumps. They help workers check how the cylinder is working and find problems early. Mill-type cylinders stay strong in tough places. Tie-rod cylinders are better for lighter, easier jobs.
Tip: Mill-type cylinders are best for hard work and rough places. Their strong build and special coatings help save time and lower repair costs.
Key features for harsh environments
Robust materials
Mill type hydraulic cylinders are built with tough materials. Makers pick steel alloys for the shell, inside tube, and piston. These steel alloys can hold heavy loads and do not bend easily. Some types used are cold-rolled steel, carbon steel tubing, and high-tensile SAE C1026. Stainless steel 301 is chosen because it does not rust and is easy to weld. For more strength, some cylinders use 4140 steel or low alloy steel. These materials make the cylinder strong enough to handle pressure and shocks.
Other materials like aluminum and bronze help stop wear and rust. Chrome plating on the piston rod makes it smooth and keeps rust away. Some cylinders use titanium alloy grade 01 because it is strong and easy to shape. Cast iron grade 60-44-18 helps stop scratches. Nickel-chromium alloys protect the cylinder from heat and rust.
Note: Picking the right material helps the cylinder last longer, even where there is dust, water, or chemicals.
Common materials used in mill type hydraulic cylinders:
Cold-rolled steel and honed seamless steel
Carbon steel tubing and high-tensile SAE C1026
Stainless steel 301
4140 steel and low alloy steel
Aluminum and bronze
Chrome plating and nickel-chromium alloys
Cast iron grade 60-44-18
Titanium alloy grade 01
Advanced sealing systems
Sealing systems in mill type hydraulic cylinders keep oil in and dirt out. These systems use special seal materials and shapes to stop leaks, even when pressure is high. Makers use seals made from HNBR, FKM (Viton®), PTFE, and UHMWPE. These seals can handle chemicals, heat, and wear. Some cylinders have chevron gland seals and piston seals for more safety.
New seal designs help in hard jobs. Anti-extrusion profiles stop seals from being pushed out by high pressure. Bidirectional pressure-activated seals work when pressure goes both ways. Multi-stage sealing systems, like tandem and buffer seals, add more layers of safety. These systems keep out dust and grit that can hurt the cylinder.
Special surface treatments help seals last longer. HVOF chromium carbide coatings and nickel-chromium platings make the rod harder and smoother. This lowers friction and helps seals work better. Some cylinders use special surface texturing to hold oil and stop seal wear.
Technology Category | Examples / Materials / Designs | Advantages / Features | Applications / Environmental Challenges |
|---|---|---|---|
Advanced Seal Materials | HNBR, FKM (Viton®), FFKM, PTFE, UHMWPE, PEEK | Chemical resistance, temperature tolerance, abrasion resistance, low friction, elasticity | High-temp, chemical exposure, abrasive environments |
Innovative Seal Designs | Anti-extrusion profiles, bidirectional pressure-activated seals, multi-stage systems | Prevent extrusion, pressure adaptability, redundancy, contamination exclusion | High-pressure, pressure reversals, contaminated environments |
Surface Engineering | HVOF chromium carbide coatings, nickel-chromium platings, plasma ceramic coatings, DLC | Enhanced hardness, corrosion resistance, wear resistance, reduced friction, improved lubrication | Mining, marine, chemical processing, food, high-efficiency systems |
Barrel Surface Treatments | Plateau honing, Nikasil® coatings | Fluid retention, wear resistance, corrosion resistance, tighter tolerances | Premium cylinders, lightweight designs, corrosive environments |
Tip: Advanced sealing systems help stop leaks and keep the cylinder working longer, even in tough places.
Resistance to abrasion and corrosion
Mill type hydraulic cylinders face dust, water, and chemicals every day. They need strong protection from scratches and rust. Makers use coatings and treatments to guard the cylinder’s surface. Hard chrome plating gives a smooth, hard layer that stops wear and rust. Laser cladding and thermal spray coatings make the surface harder and protect against chemicals. Weld overlays fix and make worn parts stronger. Black coating (liquid nitrating) stops pitting and bacteria, which is good for underwater work. Ceramic plating lowers friction and protects from heat.
Coating/Treatment | Description | Benefits for Mill Type Hydraulic Cylinders |
|---|---|---|
Hard Chrome Plating | Electrolytic plating using chromic acid-based electrolytes; thickness 2-250 µm. | Low friction, wear resistance, corrosion resistance, abrasion protection, excellent adhesion. |
Laser Cladding | High-powered laser melts coating material onto substrate; uses various laser types and powders. | Enhances surface hardness and corrosion resistance; applicable to cylinders and other components. |
Thermal Spray Coatings | Includes high-velocity oxyfuel, arc spraying, flame spraying, plasma spraying; uses metals, ceramics, plastics. | Improves wear resistance, corrosion protection, and surface durability. |
Weld Overlay | Melting and adding metal/alloy overlay to existing metal structure. | Cost-effective corrosion resistance and strength enhancement; repairs imperfections. |
Black Coating (Liquid Nitrating) | Creates iron nitride layer via liquid nitrating; used in subsea hydraulic systems. | Resistant to pitting and bacterial corrosion; provides wear protection and chemical shielding. |
Ceramic Plating | Application of titanium or tungsten ceramic coatings after surface preparation. | Reduces wear and friction; increases heat shielding. |
Hard film coating, thermoplastic polyurethane, polytetrafluoroethylene. | Increase efficiency, corrosion and wear resistance, reduce friction. |
These features help cylinders last longer and work better in hard places. Protective sleeves, like Seal Saver, keep out dirt and chemicals. These sleeves can double how long the cylinder lasts by stopping damage early.
Callout: Using features that stop scratches and rust means less downtime and fewer repairs. This saves money and keeps machines working longer.
Self-lubricating bushings and composite metal polymer bushings help too. They do not need extra grease, so they do not collect dirt. This lowers wear and helps stop breakdowns. High-strength steel and coatings that stop rust protect the cylinder from tough places. These features help the cylinder last longer and need less fixing.
Selection tips
Sizing and pressure
To pick the right size, engineers measure the bore and piston rod. They also check the cylinder’s retracted and extended lengths. The stroke is found by subtracting the retracted length from the extended length. Hose ports and thread types must match the system. Engineers look at the mounting style and measure for a good fit.
A cylinder’s high pressure rating is very important for tough jobs. Engineers figure out the hydraulic fluid pressure in PSI. They choose a cylinder that can handle this pressure. The formula is:Force = Area × Pressure
A safety factor of about 20% above the needed load helps avoid problems. This keeps the cylinder safe from pressure loss or seal wear. If rods are too small, they can bend or buckle. This can hurt seals and cause misalignment. Long strokes may need stop tubes or bigger rods for extra support.
Tip: Do not size a cylinder exactly to the load. Always add a safety margin to make sure it works well.
Mounting options
Mounting style changes how a cylinder works and lasts. Common choices are:
Flange mounts: Very strong and stiff, best for cylinders that do not move, but need careful alignment.
Clevis mounts: Let the cylinder pivot in one direction, good for short strokes and small bores.
Trunnion mounts: Give strength and let the cylinder pivot, handle heavy loads.
Lug mounts: Welded tabs give strong support but can be hurt by bad alignment.
Side mounts: Easy to put in but can twist and need careful alignment.
Centerline mounts: Take force along the cylinder’s center, great for high pressure or shock.
Good mounting lowers side loading. This helps stop rods from bending and seals from breaking. For cylinders that lay flat, stop tubes help keep them steady and make bearings last longer.
Mount Type | Best Use | Key Point |
|---|---|---|
Flange | Stationary, high force | Needs careful alignment |
Clevis | Pivot, short stroke | Can get side load |
Trunnion | Pivot, heavy load | Needs strong bearings |
Lug | Fixed, heavy load | Can be hurt by misalignment |
Side | Easy install, light load | Needs extra support |
Centerline | High pressure/shock | Best for staying steady |
Seal and material choices
Seal and material choices depend on the job and place. Engineers think about:
Operating pressure: High pressure needs strong seals and backup rings.
Temperature: PTFE is good for high heat, NBR is fine for medium heat, and Viton works with chemicals and high heat.
Speed: Fast cylinders need seals that slide easily.
Fluid compatibility: Materials must not swell or break from hydraulic fluids.
Contamination: Wiper seals keep dirt and water out and protect inside parts.
Polyurethane wipers are good for dirty places. Backup rings stop seals from being pushed out in high pressure. Stainless steel and chrome plating help stop rust and wear. Picking the right seal shape, material, and design helps the cylinder last longer and work well.
Note: Always pick seals and materials that fit the job and place for the best results.
Mill type hydraulic cylinders work very well in tough jobs. They are strong because of their welded build and small size. Their special seals help them last longer in hard places. These cylinders do not break easily, so workers do not have to fix them often. This saves time and money for the people using them.
Checking the cylinder often and adding oil helps it last longer.
Talking to an expert can help you pick the right cylinder for your job.
Picking the right cylinder keeps work safe, fast, and saves money.
FAQ
How do advanced seals help in harsh environments?
Advanced seals keep oil inside the cylinder. They block dirt and water from getting in. Makers use special materials like PTFE and Viton®. These seals last longer. They work well with high pressure and heat.
Can mill type hydraulic cylinders handle extreme temperatures?
Yes, they can. Mill type cylinders use strong metals. They also use special seals. These parts help them work in hot or cold places. They keep working when temperatures change fast.
How often should workers check or maintain these cylinders?
Workers should check cylinders often for leaks or damage. Most experts say to check them every month. Good maintenance helps cylinders last longer. It also stops sudden breakdowns.
What industries use mill type hydraulic cylinders the most?
Steel mills use these cylinders a lot. Mining and foundries use them too. Oil drilling companies also use them often. They pick mill type cylinders for tough jobs because they are strong and reliable.
