Metallurgical Industry - BOS Hydraulics
China Professional Manufacturer For Metallurgical Industry

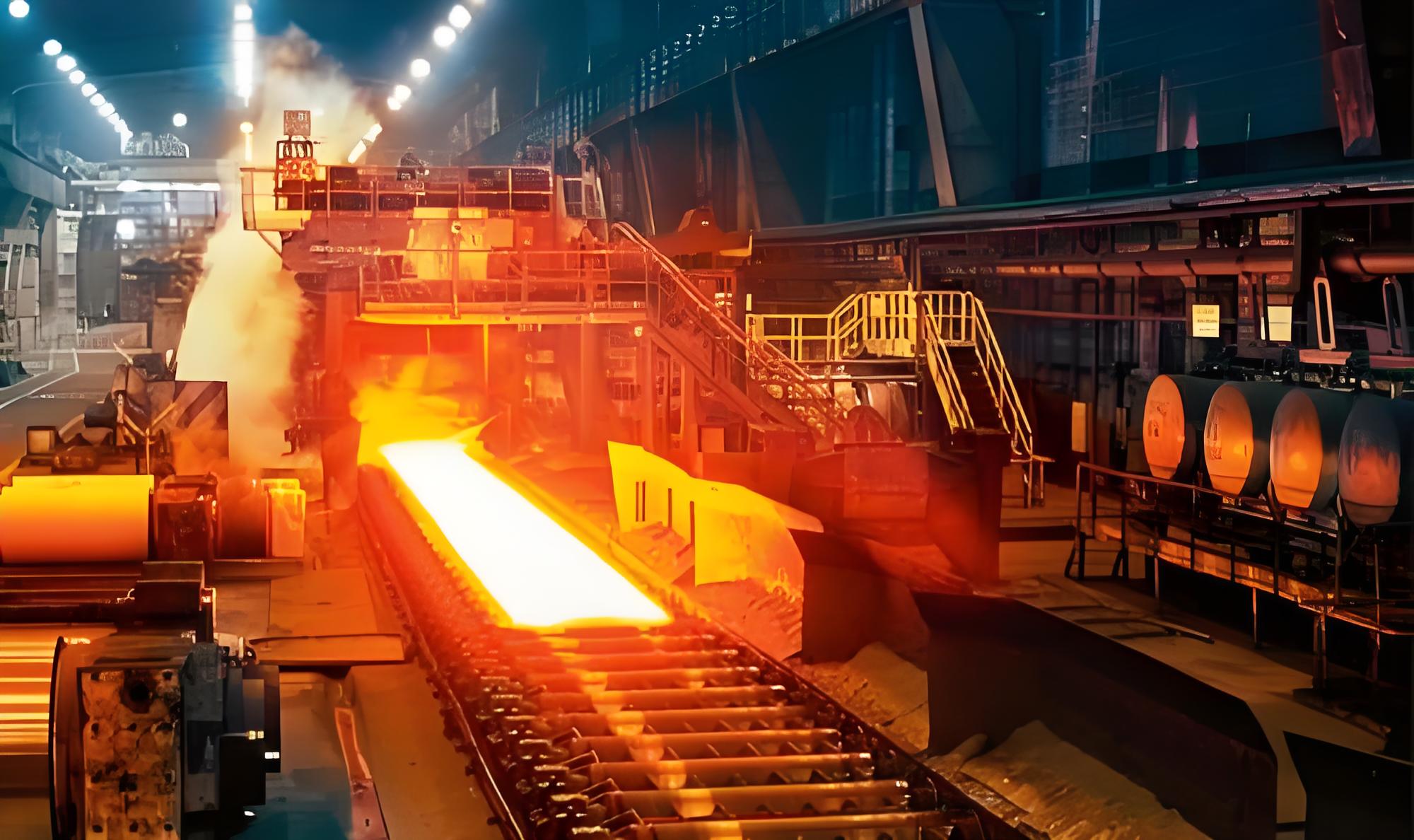

BOS Hydraulics supplies high-quality hydraulic cylinders for the metallurgical factory,including water-cooled and auxiliary cylinders.They always face high temperatures and significant dust levels.
Looking for a reliable and high-quality supplier?
Contact BOS Hydraulics by clicking the button below. ↓↓↓Our experienced and comprehensive team is dedicated to assisting you, whether it be through drafting, replacements, or improvements.
BOS Hydraulics Hydraulic Cylinder Service For Metallurgical Industry
BOS Hydraulic Cylinder List for Metallurgical Equipment
Rolling Mill Cylinders
Mill-down Cylinders: These are the most critical cylinders in a rolling mill, used to control the gap between the rolls. By precisely adjusting the rolling pressure, they ensure that steel plates, strips, or profiles achieve the required thickness and shape. These cylinders are typically high-pressure, heavy-duty, and large-diameter, and require extremely high control precision.
Looping Cylinders: In a continuous rolling line, these cylinders are used to regulate the tension of the steel strip, preventing it from becoming slack or breaking.
Roll Changing Cylinders: Used for the fast and safe replacement of heavy rolls, they are a key part of mill maintenance automation.
Continuous Caster Cylinders
Mold Oscillator Cylinders: These cylinders operate at a very high frequency, driving the mold in high-speed micro-vibrations to prevent the cast billet from sticking to the mold walls, which in turn ensures a good surface finish.
Dummy Bar Withdrawal Cylinders: Used to pull the dummy bar out of the continuous caster and guide the cast billet into subsequent rolling equipment.
Segment Cylinders: Used to support and adjust the position of the continuous caster’s segments, ensuring the precise arc of the billet during solidification.
Blast Furnace &
Converter Cylinders
Furnace Door Opening/Closing Cylinders: These are used to open and close the doors of blast and converter furnaces and must withstand high-temperature and high-dust environments.
Furnace Cover Lifting Cylinders: Used to control the lifting and lowering of the furnace cover, typically during charging or slag removal.
Taphole Drill Cylinders: Used to drive the drill that opens the taphole for tapping and closes it when the taphole needs to be plugged.
Other Metallurgical
Equipment Cylinders
Uncoiler and Coiler Cylinders: Used for winding and unwinding metal coils, providing a constant tension to ensure smooth production line operation.
Shear Cylinders: Drive heavy-duty shears to cut steel plates or strips to the required length.
Die-Casting Machine Clamping Cylinders: On die-casting machines, these cylinders provide a massive clamping force to ensure the mold remains tightly closed during the injection process.

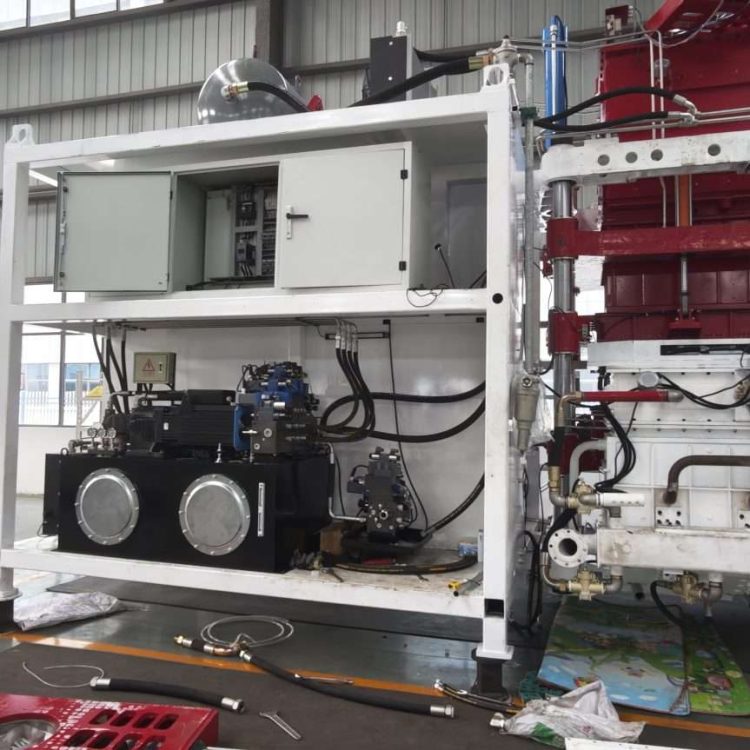

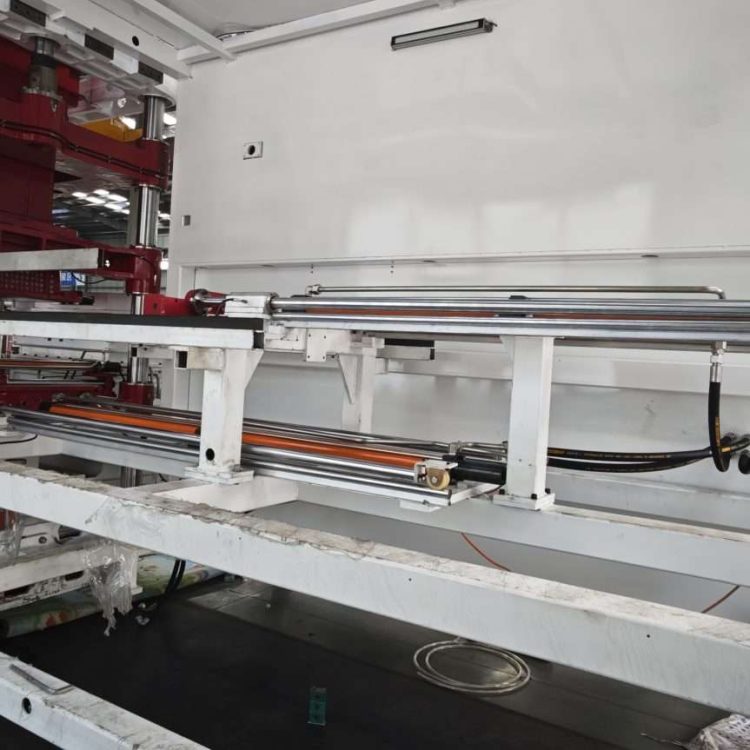

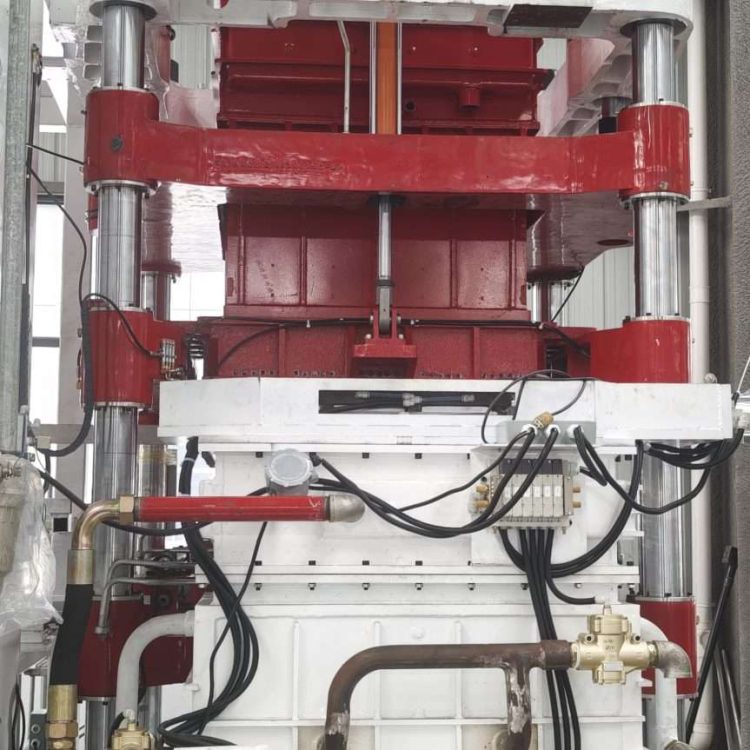

Actual photos of customer's machine
