Professional Manufacturer of Telescopic Hydraulic Cylinders - BOS Hydraulics
BOS Hydraulics makes telescopic hydraulic cylinder including
- Custom telescopic hydraulic cylinder
- Single acting telescopic hydraulic cylinder
- Double acting telescopic hydraulic cylinder
Share your project with us

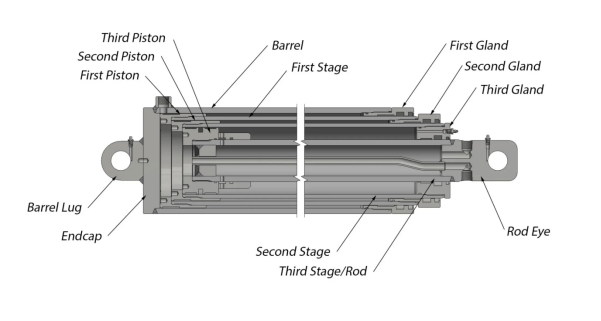

What is a telescopic hydraulic cylinder?
A telescopic hydraulic cylinder (also called a multi-stage cylinder) is a special type of cylinder that works like a folding telescope. It uses nested tubes(usually 3-6 stagess) that slide inside each other, with each inner tube smaller than the outer one.
Custom & Professional Ability
Telescopic hydraulic cylinder we mainly called ‘multi-stage hydraulic cylinder’
BOS Hydraulics main cooperative applications with customers：
- Garbage station
- Dump Truck
- Customized lifting platform for limited use (including additional hydraulic power pack)
Disadvantages of telescopic hydraulic cylinder and Why trust BOS Hydraulics
The telescopic hydraulic cylinder has low length efficiency, poor stability, many sealing points, high concentricity requirements, and weak resistance to eccentric loads.
BOS has a professional team of engineers. Through the combination of experience and practice, we have a good solution to the above-mentioned problems.
First of all, we can choose the right materials and seals for your working conditions.
On this basis, the strict production requirements are reflected.
We take the design drawings seriously and do not allow any deviation beyond the tolerance requirements.
Related Products
FAQ
Are
telescopic hydraulic cylinders more prone to leakage
than single-stage cylinders? How can this be
prevented?
Yes, to prevent and get a longer life for telescopic hydraulic cylinder,you can do better these points:
- Use better seal system
- Choose the right heat process to harden the barrel and every stage, depending on your use environment, thicker chrome plate is needed.
- Fully tested before delivery.
How to avoid
bending and deformation of telescopic cylinder under
overload condition of dump truck?
- Strengthen the guide design
- If possible,increase cylinder wall thickness and select higher strength steel grades
What
parameters are needed to customize a telescopic
cylinder?
First we need to know OD, stages, working pressure, and stroke.
The most important thing for our engineer to know is the installation space restrictions.
One-Stop Customized Hydraulics Products Manufacturer in China
- ISO9001 certification factory
- 20 years factory,more years experience
- Provide professional drawings to ensure produce High-Quality Products
