 A Comprehensive Guide on How to Choose Custom Hydraulic Cylinders

Table of Contents

Introduction

Choosing the right custom hydraulic cylinders is essential in ensuring the utmost performance in any application. Be it industrial machinery, construction equipment, or specialized manufacturing processes; the hydraulic cylinder must meet the requirement at hand. This guide aims at taking you through the most critical factors when choosing custom hydraulic cylinders. In so doing, you shall make an informed decision on the above that shall see your equipment function optimally for an extended period. Understand Your Application One cannot choose custom hydraulic cylinders without, first and foremost, understating the application. It would be best if you defined the application within which to use the cylinder. Doing so shall guide you in choosing an ideal cylinder as you take into consideration the following factors: Force Requirements: How much force does your cylinder require to exert? This shall guide you in choosing the ideal cylinder bore size and stroke length. It is worth noting that a smaller cylinder means less force, and vice versa. However, an oversize means too costly and shall take up too much space. Speed of Operation: Different operations require different cylinder designs and types depending on the speed at which you shall execute the function. Indeed, high-speed operations might need some seals and materials to meet the increased wear and tear. Load Bearing: How much is your cylinder required to move or support? This includes the weight of the force and any additional forces such as friction or resistance. Movement Requirements: What are the specifics of movement required? For example, is it linear, rotary, or both?

Choosing the Type of Cylinder

The alternative will be the custom hydraulic cylinder that you just want soon after defining your application. There are two common types:

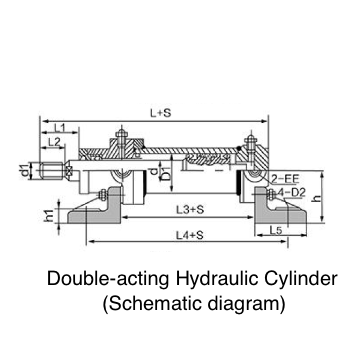

Double-Acting Cylinders: Double acting cylinders offer force in two ways, and are used for applications that require more control over its operation. In operations such as lifting and lowering, these are widely utilized because it is a matter of more controllable movement.

There are single-acting cylinders (mean they have pressure applied to one side only, and return by means such as gravity or spring to the ‘home’ position). These are basic cheaper cylinders and ideal when force is required in one direction only as opposed to double-acting cylinders.

Moreover, there are customized cylinders available like telescopic cylinder for increased reach and rotary cylinder that change the linear motion into rotational movement. Depending on how your app moves and the space constraints make you decide between a few closeButtonPositions.

Selection of Material and Coating

The durability and performance of your hydraulic cylinder will depend on the material as well as coatings that are used. Here’s what to consider:

Material to Use Common materials for hydraulic cylinder tubes include steel, stainless steel and aluminum. One of the principal uses for steel is so much, in fact that it’s pricey notwithstanding a mix material and might require additional coatings. It is more expensive than steel and offers superior corrosion resistance —making it a suitable carbon material for severe atmospheres. The lights are made from aluminum, lightweight and corrosion resistant — great for any application!

Coating Options: Coatings will increase the resistance of erosion, corrosion and chemical to a cylinder Common coatings include:

Chrome Plating: Appropriate for most industrial applications due to its exceptional wear and corrosion resistance.

Nickel Plating that is great for salinity and chemical atmosphere.

Ceramic Coatings: in that very strong and hard finish, excellent for high wear applications.

Material and coating selection should also be based on the operating environment, longevity of the cylinder

Mounting Considerations

You need to take into account how you mount your hydraulic cylinder. The method how the cylinder is mounted will directly influence performance of that particular one and in what condition it turns out with passing years. Some common mounting types are:

Fixed Flange Mounting; unbeatable for high-force applications, adaptable and robust Therefore, flange mounts are good for stationary applications where you will not move the lens.

Trunnion Mounting : Rotating Movement is Enabled Locally to Pivot the Cylinder for Applicationsstrtolower Equipment such as cranes and heavy machinery often use trunnion mounts.

Option Clivis Mounting Function: Allow the cylinder to move with load—reduce side loading on rod end. Clevis mounts are common in mobile equipment where dynamic movement occurs.

Offers Customization and Professional Help

The correct custom hydraulic cylinder for your application will involve a balance between these factors. Although this guide is a strong initial reference point, it takes an experienced professional to ensure that your hydraulic system works at its best – from head to toe. Working with companies such as Dalton Hydraulic can provide you the knowledge and expertise in designing custom solutions.

Conclusion

To sum up, the process of choosing a custom hydraulic cylinder is not necessarily difficult but will require you to think about how much force and speed your application needs, the load it must bear (max), as well as vertical or horizontal movement requirements. Of course, through an examination of these factors — all vital to the proper operation of any hydraulic system — your equipment will run better for longer.

To speak with our experts regarding specific solutions, please contact BOS Hydraulic! With our many years of experience and professional hydraulic cylinder design, we will assist you in providing the optimal solution for your application.
