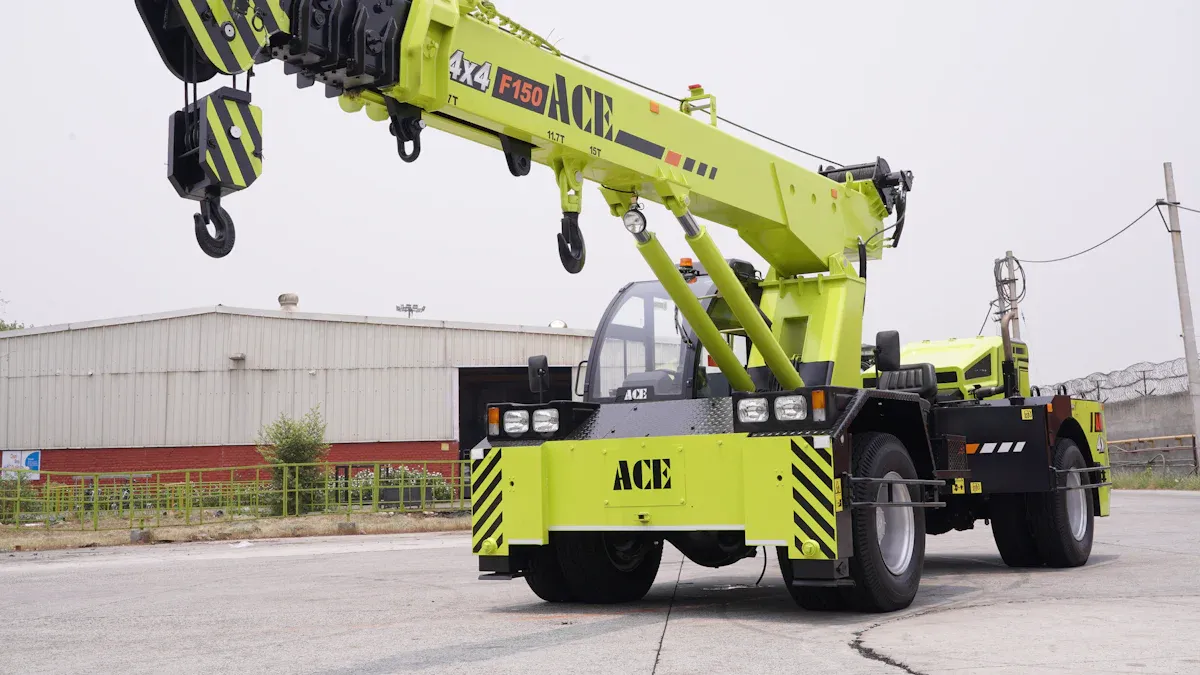

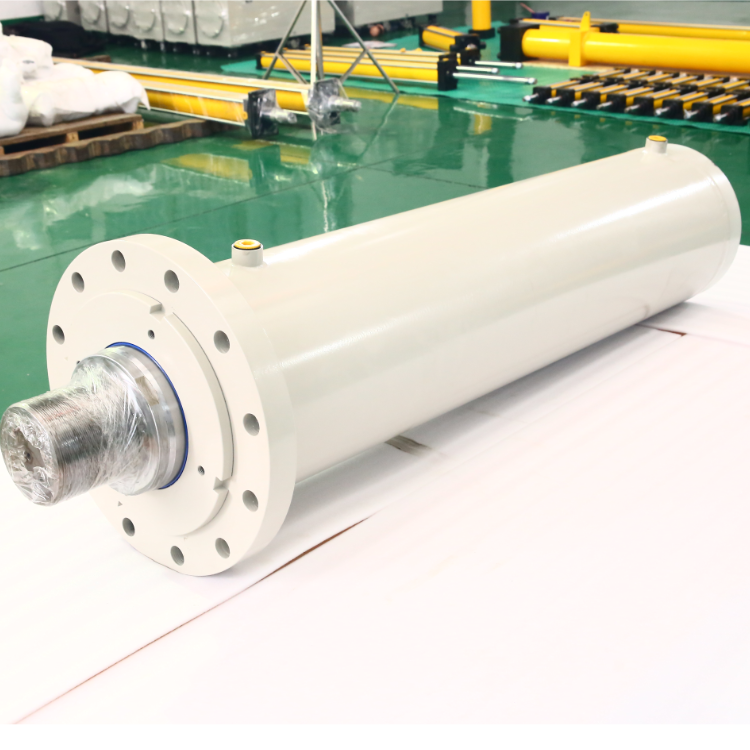

Types of Heavy Duty Hydraulic Cylinders Explained

Heavy duty hydraulic cylinders have different main types. Each type has special features and uses. The main types are tie-rod, welded, telescopic, single-acting, and double-acting cylinders. The table below shows how common each type is and what they are used for:

Each type of heavy duty hydraulic cylinder is built in a different way. Each one works best for certain jobs. Welded cylinders are strong and last long in tough places. Telescopic cylinders help save space. Picking the right type is very important. If you pick the wrong one, machines can break or be unsafe.Choosing the right cylinder keeps machines safe and working well.

Key Takeaways

• Heavy duty hydraulic cylinders have different types. These include tie-rod, welded, telescopic, single-acting, and double-acting. Each type is made for a special job or place.

• Picking the right cylinder type and size is very important. It helps machines stay safe, work well, and not break down. This also stops expensive repairs and lost time.

• Tie-rod cylinders are simple to repair. They work well in factory machines. Welded cylinders are stronger. They are better for hard jobs with high pressure.

• Telescopic cylinders do not take up much space. They can reach out far. This makes them great for dump trucks and cranes. But, they must be checked and cared for often.

• Double-acting cylinders push and pull with strong, steady force. They are best for heavy jobs that repeat and need careful control.

Heavy Duty Hydraulic Cylinder Overview

What Is a Heavy Duty Hydraulic Cylinder

A heavy duty hydraulic cylinder is a strong machine part. It uses fluid under pressure to make things move or lift. These cylinders can handle very high pressure, sometimes over 10,000 PSI. They are made from tough metals like cold-rolled steel and carbon steel tubing. Some are made from stainless steel, titanium alloys, or nickel-chromium alloys. These metals help the cylinder last longer and not rust. The main parts are the cylinder barrel, piston, piston rod, seals, and mounts. Many parts have special coatings like chrome plating. This helps them work longer and not wear out fast.

Heavy duty hydraulic cylinders come in many sizes. Small bore cylinders have a 1-2 inch bore and do light jobs. Medium bore cylinders have a 2-4 inch bore and are used in construction and farming. Large bore cylinders are 4-8 inches wide and power big machines. Extra large bore cylinders are over 8 inches and do very hard jobs.

Note: Heavy duty welded hydraulic cylinders often use threaded glands and welded mounts like clevis, trunnion, or flange. These features help them handle higher pressures and improve stability.

Role in Heavy Duty Applications

Hydraulic cylinders are important in many industries. They help lift, push, pull, and hold heavy things. Construction, manufacturing, farming, mining, and marine jobs all use these cylinders. For example, excavators and cranes use welded body cylinders because they are strong and small. Factories use tie-rod cylinders because they are easy to fix. Farms use telescopic cylinders because they fit in small spaces but move far.

Heavy duty hydraulic cylinders must be very strong and safe. They need to work under high pressure and move big loads. They also must not rust and should last a long time. Designers use thick barrel walls, strong steel tubes, and good seals to make them better. Safety is always the most important thing. Engineers make sure cylinders can hold 1.5 to 2 times more than needed to keep them safe.

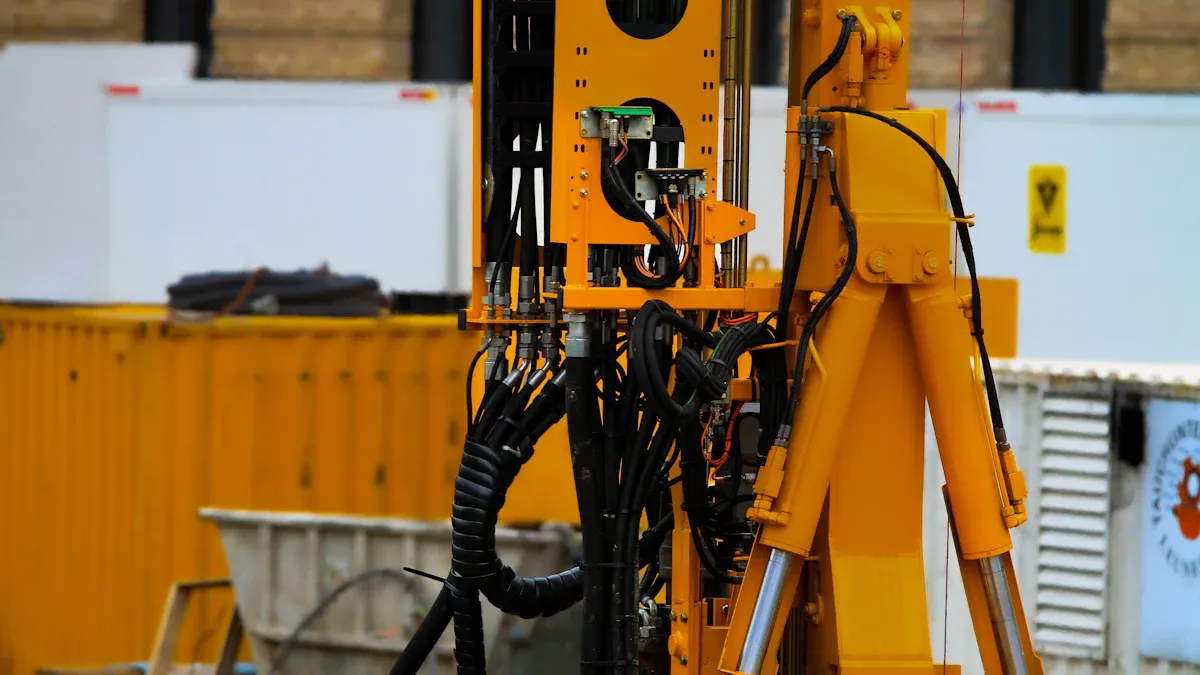

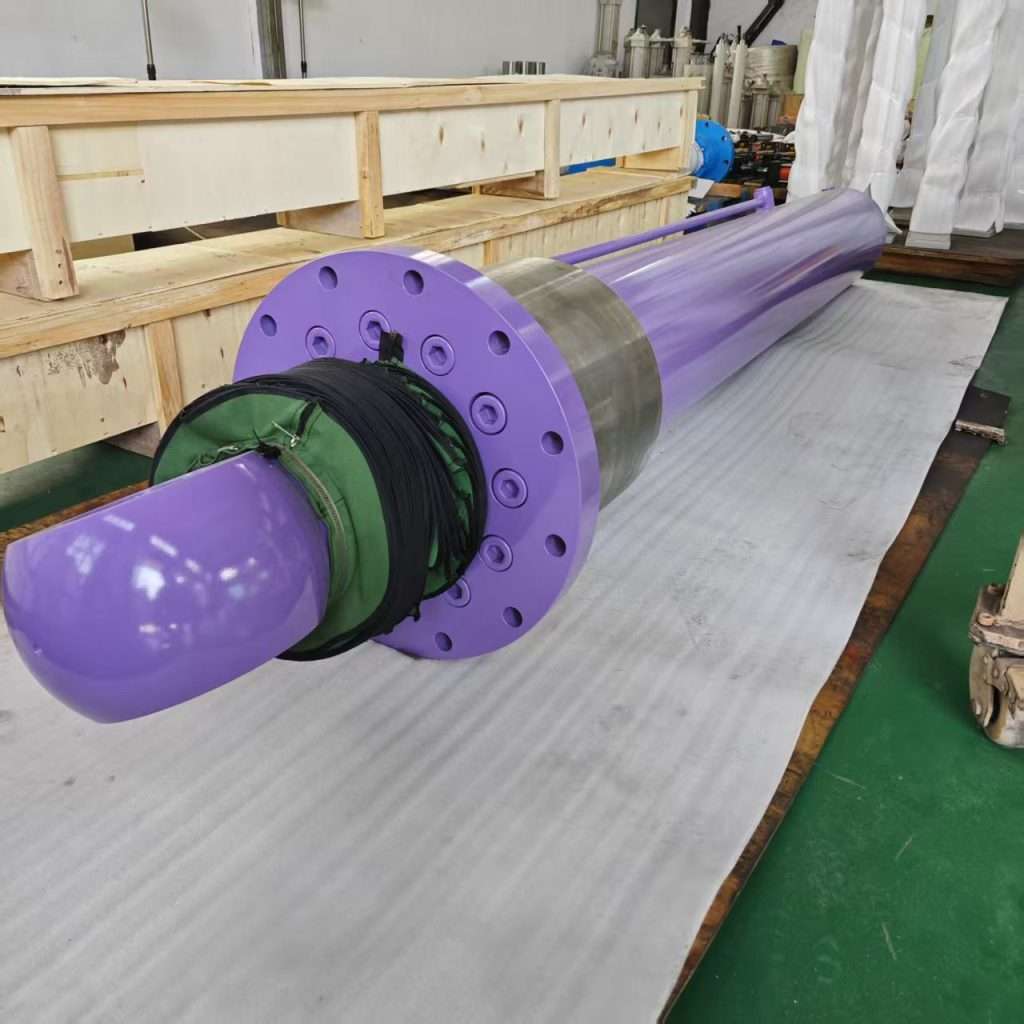

Types of Heavy Duty Hydraulic Cylinders

Tie-Rod Heavy Duty Cylinders

Tie-rod hydraulic cylinders are very common in factories. They have strong steel tie rods that run along the cylinder barrel. These rods hold the end caps tightly in place. This helps keep the cylinder parts lined up when it works.

• The main parts are the cylinder barrel, piston, piston rod, end caps, seals, and tie rods.

• Seals stop fluid from leaking out, so the cylinder works well.

• The design makes it easy to change or fix parts. Workers can take them apart and put them back together with simple tools.

• Tie rod cylinders follow NFPA rules, so parts can be swapped and are easy to find.

• To keep them working, people check seals, rods, and tie rods for damage, tighten bolts, and clean the system.

Tip: Tie-rod hydraulic cylinders are tough and simple to take care of. They work well even with high pressure and heavy loads.

Tie rod cylinders are best for machines in factories, presses, and other equipment that stays in one place. They are good when you need something easy to fix and very reliable.

Welded Heavy Duty Cylinders

Welded cylinders are built differently than tie rod cylinders. Their end caps and flanges are welded right onto the cylinder barrel. This makes the body smooth, small, and strong, with no tie rods on the outside.

• Welded cylinders are smaller and fit better in tight spaces.

• The welded build makes them stronger and able to handle more pressure and weight.

• They do not break as easily from stretching like tie rod cylinders can.

• Welded cylinders are used in building machines, farm tools, oil rigs, and boats.

Designers use smooth shapes, thick walls, and good welding to stop cracks and weak spots. They also add bushings and supports to keep the piston rod straight and strong. Welded cylinders need special tools to fix, but they last a long time and are very strong, so people use them for hard work.

Telescopic Heavy Duty Cylinders

Telescopic cylinders are special because they have many tubes inside each other. These tubes are called stages. The biggest tube comes out first, then the smaller ones, so the cylinder can get very long from a small size.

• Telescopic cylinders are great for dump trucks, cranes, and farm machines where space is tight but you need a long reach.

• The many stages let these cylinders lift heavy things very high or deep.

• Workers can finish jobs faster and use less energy.

Note: Taking care of telescopic cylinders is harder than other types. Each stage must move together just right. Workers need to check seals and make sure everything lines up to stop leaks and wear.

Single Acting Heavy Duty Cylinders

A single acting hydraulic cylinder uses fluid to push the piston one way, usually to make the rod go out. To pull the rod back in, it uses a spring, gravity, or the weight of what it is lifting. This simple way means there are fewer parts and it is easier to fix.

• Oil goes in one port to push the rod out.

• When the pressure stops, the rod comes back by outside force.

• Single acting cylinders are used in car jacks, tool holders, parking brakes, and lifts where gravity helps pull the rod back.

Single acting cylinders are light, small, and not expensive. They are best for jobs that do not need the rod to come back quickly or often. Both tie rod and welded cylinders can be made as single acting models for different jobs.

Double Acting Heavy Duty Cylinders

A double acting cylinder uses fluid to move the piston both ways. Fluid goes in one port to push the rod out and in another port to pull it back in. This lets workers control both directions, so it is one of the most useful cylinder types.

• Double acting cylinders give strong, steady force both ways.

• Some have rods on both ends for better balance and control.

• These cylinders can push and pull quickly and the same way every time.

Double acting cylinders are needed in big machines like excavators, bulldozers, presses, and machines that move things. They are also used in robots, car lifts, and any job that needs careful, two-way movement.

Double acting hydraulic cylinders are best for hard, repeating, or big jobs where single acting cylinders cannot give enough power or control.

Hydraulic Cylinder Types: Pros and Cons

Tie-Rod Cylinders

Tie-rod hydraulic cylinders have many good points for hard jobs.

• They save money because their strong build means fewer repairs.

• It is easy to fix them. Workers can take them apart fast with the threaded rods, so machines do not stop for long.

• These cylinders work well when there is a lot of pressure or heavy things to move.

Tip: Tie-rod cylinders are great for factory machines that need fixing often.

Welded Cylinders

Welded cylinders have end caps that are welded right onto the barrel. This makes them small and very strong.

• Welded cylinders last longer and can handle tough places better than tie-rod cylinders.

• They do not have as many places where leaks or breaks can happen, so they last longer and work better.

• These cylinders are best for big jobs in hard places where a lot of weight needs to be moved.

But, welded cylinders are not easy to fix. If they break, you might have to get a new one instead of fixing it.

Telescopic Cylinders

Telescopic hydraulic cylinders are used in moving machines where space is tight and reach is important. They move smoothly, but the more complex ones need more care.

Single Acting Cylinders

Single acting cylinders use fluid to push out, and gravity or springs to pull back.

• They are simple and easy to take care of.

• These cylinders cost less and are good for jobs that only need force one way.

Single acting cylinders are not right for every job. They are best when you do not need perfect control.

Double Acting Cylinders

A double acting cylinder uses fluid to move the piston both ways.

• Two ports let fluid push and pull, so you can control movement very well.

• These cylinders work faster and better than single acting cylinders.

• They give strong force both ways, which is needed for big jobs and heavy machines.

• Double acting cylinders can move quickly or slowly and still be accurate.

• They come in many sizes and can be used for lots of different jobs.

Note: Double acting cylinders cost more and have more parts, but they are the best for hard jobs because they give you more power and control.

Applications of Heavy Duty Hydraulic Cylinders

Industrial Uses

Heavy duty hydraulic cylinders are very important in factories. They help move, lift, and press heavy things. These cylinders power machines in steel mills and paper plants. They also work on assembly lines. Workers use them to stamp metal and mold plastic. They also press parts together. These cylinders make jobs faster and easier for people. Without them, some jobs would be too hard or slow.

Industrial cylinders work in tough places. They must handle high pressure and heat. They also run for many hours. Designers pick strong materials and good seals. This keeps the cylinders safe. People check and fix them often to stop leaks and breaks. Many factories use tie-rod cylinders. These are easy to fix and replace.

Tip: Picking the right cylinder size and type helps keep factories safe and stops machines from breaking down.

Construction Equipment

Heavy duty hydraulic cylinders are needed in construction machines. They power excavators, bulldozers, loaders, backhoe loaders, and dump trucks. These cylinders turn fluid pressure into force. This helps machines lift, dig, push, tilt, and haul. For example, excavators use cylinders to move the boom and bucket. Loaders use them to lift and tilt buckets. Bulldozers use them to move blades. Dump trucks use them to lift and lower beds.

Good cylinders must keep out dirty fluid. They need strong seals and rods. Putting them in the right way helps stop damage. People check seals and change fluid to keep machines working. Most cylinders are made from steel. This makes them strong and last longer. Picking the right bore size and stroke length is important. Good mounting and easy fixing help stop machines from breaking down.

Note: Hydraulic cylinders in construction help with digging, lifting, tilting, and hauling. Good cylinders keep big machines safe and working well.

Agricultural Machinery

Farmers use heavy duty hydraulic cylinders in many farm machines. These cylinders turn hydraulic energy into force and movement. This lets farmers lift, lower, and control tools. They are used in three-point hitches and tractor steering. They also help cut crops in harvesters. Cylinders help with grain handling and boom control in sprayers. They also help balers push out bales.

Farm cylinders must work in dirt, water, and changing weather. Makers use strong steel and special seals to keep out dirt. Some new cylinders have sensors and electronic controls. These help farmers work faster and better. They also help save work and grow more crops.

• Common uses in farming:

  • Moving plows and tillers

  • Steering tractors

  • Controlling sprayer booms

  • Running loaders and harvesters

Farmers need hydraulic cylinders to make their work easier, safer, and faster.

Choosing the Right Heavy Duty Hydraulic Cylinder For Your Application

Key Selection Factors

Picking the right hydraulic cylinder for hard jobs takes planning. Every job is different, so you must think about what is needed. This helps machines stay safe and last longer.

• Figure out the heaviest load the cylinder will lift or push. Always plan for extra weight, and pick a cylinder that can handle more than the biggest load.

• Measure how far the cylinder needs to move. Add a little more length to be safe and keep things lined up.

• Pick the best way to mount the cylinder. You can use flange, clevis, trunnion, or side mounts. The mount must hold the cylinder and take all the force during work.

• Think about where the cylinder will be used. Hot, cold, dusty, wet, or chemical places can make cylinders wear out faster. Choose the right metal, coating, and seals for the job.

• Check how fast and how often the cylinder will move. Moving too fast or too much can make it get hot or wear out.

• Make sure the hydraulic fluid works with the seals and metal in the cylinder.

• If you need very exact moves, pick cylinders with sensors or special valves.

Tip: Always check your math and make sure the cylinder fits the space and job.

Quick Comparison

Each main type of heavy duty hydraulic cylinder has good and bad points. The table below shows how they compare for price, strength, and care:

Experts say to match the cylinder type to the job. Welded cylinders are best for high-pressure work in tough places. Tie-rod cylinders are good for most factory jobs and cost less. Telescopic cylinders save space and reach far but need more care. Always pick the right mount and size to keep machines safe and working well.

Heavy duty hydraulic cylinders have different types. Each type is good at certain jobs. Tie-rod cylinders have threaded rods. This makes them easy to fix and saves money. Welded cylinders are small and do not leak much. They work well for high-pressure work. Telescopic cylinders can reach far even in small spaces. Single-acting cylinders push in only one way. Double-acting cylinders can move things both ways.

• Experts help pick the best cylinder by looking at load, materials, sealing, and what the system needs.

• Talking to manufacturers helps keep things safe and reliable. It also makes sure you get the right cylinder for hard jobs.
