Why welded hydraulic cylinders are the preferred choice for construction machinery

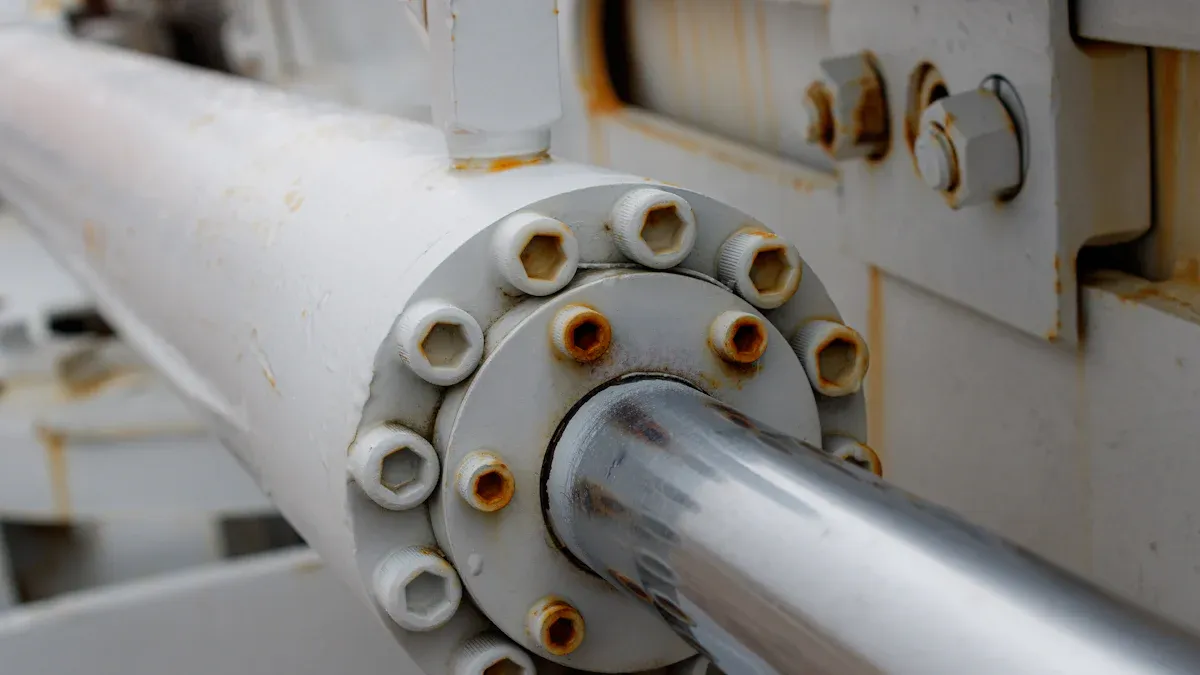

Welded vs. Tie-Rod Cylinders

Design Differences

Welded and tie-rod hydraulic cylinders are built in different ways. Tie-rod cylinders have long rods outside the cylinder. These rods keep the end caps attached. Welded hydraulic cylinders have the barrel joined right to the end caps. This means they do not need rods on the outside. The shape is smoother and smaller.

Here is a table that shows how their designs are different:

Welded hydraulic cylinders have some good points because they do not use outside rods:

• The small size fits into tight spots on machines.

• The smooth outside keeps dirt from sticking.

• The welded build makes it stronger and stops leaks.

• These cylinders work well in hot or high-pressure places.

Performance in Construction

Construction machines do hard work every day. They must lift heavy things, work in bad weather, and fit in small spaces. Welded hydraulic cylinders do these jobs better than tie-rod cylinders.

• Welded hydraulic cylinders are small and light. The barrel is welded to the end caps, so it can handle more pressure. This is great for moving machines and tough jobs.

• Tie-rod cylinders can take high pressure, but only up to 3,000 PSI. They are easier to fix but are bigger. This makes them not as good for machines that need to save space.

• Welded hydraulic cylinders last longer and work better in rough places. Their strong, leak-proof build means fewer problems and less fixing.

• Machines like bulldozers, cranes, and excavators use welded hydraulic cylinders. They need strength, toughness, and a small size.

Tip: Picking a welded hydraulic cylinder helps machines work harder and last longer, even when the job is tough.

Welded Hydraulic Cylinder Benefits

Strength and Durability

Welded hydraulic cylinders are strong and last a long time. Construction machines lift heavy things and face high pressure. These cylinders have a barrel welded to the end caps. This makes them tough and able to handle hard jobs. They work well on bulldozers, excavators, and road rollers. The welded design stops oil from leaking out. It keeps the system working well. These cylinders do not rust easily and can handle lots of use. They are good for rough places.

Here is a table that compares how tough they are:

Note: Good sealing, oiling, and checking often help welded hydraulic cylinders last longer.

Compact and Lightweight

Welded hydraulic cylinders are small and light. The barrel is welded to the end caps. This makes the cylinder short and thin. It saves space on machines. These cylinders fit in tight spots where big ones cannot go. For example, a welded cylinder can give more pressure and be shorter than a tie rod cylinder.

• Welded cylinders are thin and have small bodies.

• Their small size makes machines smaller.

• Being light helps the whole machine weigh less.

• These cylinders are used in small excavators and loaders.

The small design makes putting them in easy. It also makes machines look better.

Leak and Contamination Resistance

Welded hydraulic cylinders stop leaks and keep dirt out. The welded end caps mean no threads at the base end. This lowers the places where leaks can start. The rod end uses a seal that does not depend on tightness. This makes leaks even less likely.

The sealed design keeps out dust and dirt. This makes welded hydraulic cylinders good for tough jobs. Extra seals and covers can help keep out even more dirt.

Easy Maintenance

Welded hydraulic cylinders make fixing and checking easier. The welded build has fewer parts to connect. This makes the cylinder stronger and stops leaks. It is easy to check, oil, and change seals. Fewer weak spots mean less time fixing and more time working.

• Checking and oiling is easy to do.

• Changing seals and setting up is simple.

• Strong build means fewer problems and longer use.

Tip: Welded hydraulic cylinders help machines work longer without stopping. Good design and strong seals make them last and work well.

Cost and Service Life

Lower Maintenance Costs

Welded hydraulic cylinders help construction companies save money on repairs. Their strong, welded design means fewer parts can break or leak. The smooth barrel and end caps create a tight seal. This seal keeps oil inside and dirt outside. Workers spend less time fixing leaks or changing seals. Machines can keep running longer without stopping for repairs.

A welded cylinder does not have tie rods that can loosen or stretch. This means fewer breakdowns on the job. When a cylinder needs service, workers often find it easier to check and replace seals. The simple design also helps keep the cylinder clean, which lowers the risk of dirt causing damage.

Tip: Regular checks and oiling help welded cylinders last even longer and work better.

Here is a quick look at how maintenance compares:

Extended Lifespan

Welded hydraulic cylinders last longer than tie-rod cylinders, especially in tough jobs. Their welded end caps and barrels make the whole cylinder stronger. This design gives better seals and fewer places for leaks. Machines with welded cylinders can handle heavy loads and high pressure for many years.

• Welded cylinders have a strong build that resists bending and breaking.

• The tight seals keep oil in and dirt out, which protects the inside parts.

• Workers do not need to fix or replace welded cylinders as often as tie-rod types.

• The long life and low repair needs make welded cylinders a smart choice for saving money over time.

Construction companies choose welded hydraulic cylinders because they want equipment that works hard and lasts. These cylinders help machines stay on the job and reduce costs year after year.

Customization and Flexibility

Application Versatility

Welded hydraulic cylinders can be changed in many ways. This helps them fit different construction machines. Engineers can pick the size, shape, and features for each cylinder. This makes the cylinders work better for each job.

Here is a table with some common ways to change them:

Many machines use these cylinders. Some are excavators, cranes, bulldozers, and dump trucks. Each machine needs a different cylinder shape or strength. For example, excavators use cylinders to move the boom and bucket. Cranes need strong cylinders to lift heavy things. Dump trucks use telescopic cylinders to lift the bed.

Customizing helps each machine work its best and last longer.

Tailored Engineering

Engineers make welded hydraulic cylinders for special jobs. They pick the right size, stroke, and mount for each machine. They also choose strong materials and seals for hard work.

Custom cylinders can have things like position sensors or locking valves. These help workers control the machine and keep it safe. Good welding makes the cylinder strong for heavy loads and rough use.

Custom designs help machines work faster and break less. For example, one company used special welded cylinders and did 40% more work. They also spent less time fixing broken parts.

Welded hydraulic cylinders fit in small spaces and last a long time. Their strong build and smart design help them do the hardest jobs in construction.

Welded hydraulic cylinders are special in construction machines for many reasons. They are very strong and tough, so they work well for hard jobs. Their small shape lets them fit into tight spots. This also helps stop leaks and makes them more dependable. You can change them to fit different jobs and places. Construction bosses should think about using welded hydraulic cylinders. These cylinders help machines keep up with new tools and the needs of the industry.
