Welded hydraulic cylinders are used in tough jobs because they are very strong and work well. More than half of the market uses welded construction. This shows people like it for being tough and small. These cylinders have welded joints that do not have seams. This helps stop leaks and makes them more reliable. Welded connections can handle more pressure. Some piston rod welded hydraulic cylinders can take 25% more pressure than tie-rod ones. Makers pick strong materials for welded piston rod welded hydraulic cylinders. This helps them last longer and makes fixing them easier, even when things get very hard.
Key Takeaways
Welded hydraulic cylinders are strong and small. Their parts are joined together forever. This helps stop leaks and makes them last longer.
Using strong, rust-proof materials like AISI 4140 steel helps a lot. Adding special coatings also protects the cylinders. This lets them handle high pressure and work for many years.
Good sealing systems stop leaks. Doing regular maintenance keeps the cylinders working well, even in hard jobs.
Welded cylinders fit into small spaces easily. They can be changed with different ports and mounts for special uses.
Welded cylinders can take more pressure and heavy loads than tie-rod cylinders. But they need more careful setup and fixing.
Structural Strength
Welded Construction
Welded hydraulic cylinders are very strong because of how they are built. Engineers use thick, seamless pipes to make the barrel. The barrel gets welded right to the end caps. This means tie rods are not needed. The cylinder is small and tough. Welded joints help stop leaks. They also make the cylinder stronger.
Welding is important for making these cylinders work well. Multi-pass pulsed-spray welding helps keep the shape right. It also controls stress from welding. Weld chamfering makes sure the wire and gas cover the weld. This helps save time and keeps the weld from bending. Strong filler materials like E80 wire are used. These match the needs for high-pressure cylinders. Good welds help the cylinder last longer. Bad welds can cause cracks. Cracks can make the cylinder break early.
Note: Welded cylinders are small. They fit into tight spaces in machines. This makes them good for construction equipment, cranes, and mining trucks.
Fatigue failure happens when stress builds up in the weld seam. Engineers use FEM to lower stress at the end caps. This helps the cylinder last longer. Welded cylinders can be changed to fit special needs. You can add ports, mounts, or valve manifolds. This makes them useful for many jobs.
High-Strength Materials
Picking strong materials is important for welded hydraulic cylinders. Makers choose materials that are tough and resist rust. The materials must handle high pressure and lots of use. Here is a table with common materials:
Material | Typical Use in Hydraulic Cylinders | Mechanical Properties / Notes |
|---|---|---|
AISI 4140 Steel | Custom-forged, non-welded cylinders in high-pressure applications (oil & gas) | Yield strength ~110,000 psi; quenched and tempered; high strength and reliability |
Stainless Steel 301 | Cylinders and piston rods | High-strength austenitic alloy; excellent corrosion resistance; good weldability; high ductility when cold worked |
Titanium Alloy Grade 01 | Cylinder components requiring high formability | Soft, pliable; 99% titanium; excellent formability |
Low Alloy Steel | General hydraulic cylinder components | Superior strength, flexibility, toughness, weldability, fatigue resistance; corrosion resistant; performs well in extreme temperatures |
Cast Iron Grade 60-44-18 | Fasteners and valve components | High tensile strength; abrasion resistance |
Nickel-Chromium Alloys | High oxidation and corrosion resistance needs | Excellent high-temperature strength and electrical resistivity |
Chrome Plating | Rods and surfaces exposed to wear and corrosion | Provides corrosion resistance and reduces friction; ideal for high-pressure applications |
The piston rod is very important. It faces fluid inside and tough conditions outside. Makers use hard chrome-plated steel for the rod. Coatings like chrome plating help stop wear and rust. These coatings keep the seals working well. This helps the cylinder stay strong for a long time.
How long the cylinder lasts depends on the material and welding. Tests show strong steels like 1.8849 work better. They last longer when coated. Engineers use washers or glue that can take heat. These fill gaps near oil ports. This stops oil from getting in and causing cracks. It helps the cylinder last longer under high pressure.
Pressure Handling
High-pressure welded hydraulic cylinders can take very strong pressure and heavy loads. How much pressure they handle depends on their design and materials. Mill-type welded cylinders can take up to 5,000 psi or more. They are strong because the barrel is welded to the end caps. Tie rods are not needed.
Makers test each cylinder to make sure it is safe. Rules like NFPA, ISO, and DIN set the standards. Welded cylinders use strong materials like steel and aluminum. They use special welding methods like MIG and TIG. This makes the cylinder tough and able to handle high pressure.
Welded rod cylinders are small and have welded end caps. This means fewer places for leaks. The cylinder takes up less space. It is strong and works well in rough places. Double-acting cylinders work faster and more accurately. They last longer and are more durable. These cylinders are used in building, farming, and big machines. They are chosen for their strength and ability to hold heavy loads.
Tip: Always think about how much load and pressure you need. Pick the right materials and make sure the welding is good. This helps your cylinder stay strong and last a long time.

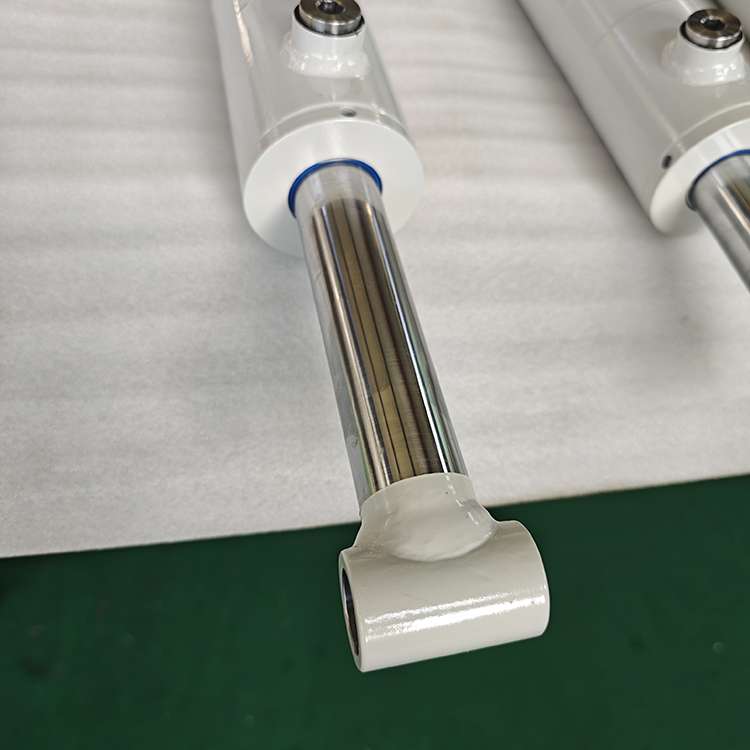

Design Features
End Caps and Barrel
The end caps and barrel are the main parts of a welded hydraulic cylinder. Makers use careful welding to join the end caps to the barrel. This makes the cylinder one solid piece of steel. The cylinder becomes very strong and can handle a lot of pressure. The welded joint between the barrel and end caps has no seams. This means there are fewer places for leaks. The cylinder is also tougher and lasts longer.
Welded end caps help keep the seal tight.
The strong barrel and end cap connection holds pressure well.
Using tough alloys and materials that do not rust helps the cylinder last longer.
Careful building makes sure the parts fit well and are smooth.
Note: The welded design makes it hard to fix. You cannot easily change the end caps, but the cylinder is much stronger and more dependable.
How the end caps and barrel are made helps the cylinder lift heavy things and handle high pressure. This design also helps move force better, so less energy is wasted.
Sealing Systems
A good hydraulic cylinder needs a strong sealing system to stop leaks and keep pressure. Welded cylinders use special seals and the right oil to work well. These seals keep the cylinder working even when there is a lot of pressure.
Rod seals keep oil inside when the rod is not moving. If these seals break, oil can leak out and the cylinder may not work right.
Piston seals stop pressure from spreading to both sides of the piston. If these seals fail, oil leaks inside and the system does not work well.
Better seal sets help the cylinder last longer and need less fixing, even in tough places.
Things like rust, very hot or cold weather, and dirty oil can hurt the seals. Too much or too little pressure can also make seals not work. Checking and changing bad seals often helps stop leaks.
Tip: Using good seals and checking them often keeps the cylinder working well and stops leaks.
Compact Design
Welded hydraulic cylinders are small and light. This helps them fit in tight spots, like in machines and trucks. The welded body means there are no tie rods, so the cylinder is smaller.
The small size lets the cylinder move farther without getting bigger.
Being lighter and smaller helps machines stay steady.
The strong welded body does not break or leak easily, even in rough places.
You can also change welded cylinders to fit special jobs. Makers can change the ports, mounts, and other parts to match what you need. Here is a table with some ways you can change welded cylinders:
Customization Aspect | Description |
|---|---|
Porting Options | SAE (O-Ring), NPT, Code 61/62 ports, flare fittings, welded tube lines, custom porting |
Mounting Types | Cross tube, clevis, flange, trunnion, single lug, threaded mounts, bushings, spherical bearings |
Build Types | Threaded Retainer, Threaded Nut, Bolt Flange, Snap Ring, Wrap Ring |
Custom Components | Machined pads for valve blocks, cavities for cartridge valves, welded fittings, custom designs |
The small and strong welded design helps the cylinder work well and last long. It also saves space and makes machines work better.
Welded cylinders are strong, seal well, and stay steady. This makes them a top pick for hard jobs.
Welded Hydraulic Cylinder vs. Tie-Rod Cylinders
Structural Differences
Welded hydraulic cylinders and tie-rod cylinders are built in different ways. Welded cylinders have end caps that are joined right to the barrel. This means they do not need outside rods. The design is smaller and has fewer places for leaks. It is also stronger. Tie-rod cylinders use four rods to hold the end caps and barrel together. This makes them bigger and gives more spots where leaks can happen. Welded cylinders are stronger and can handle more pressure and heavy loads. Tie-rod cylinders are easier to fix, but they are not as strong or tough as welded ones.
Feature | Welded Hydraulic Cylinders | Tie-Rod Cylinders |
|---|---|---|
Assembly Method | End caps permanently welded to the barrel | End caps held by four external threaded tie rods |
Footprint | Smaller, more compact design | Larger footprint |
Pressure Handling | Can handle higher operating pressures | Generally lower pressure ratings |
Durability & Integrity | Improved durability and structural integrity | Less durable comparatively |
Maintenance | More difficult to service due to permanent welds | Easier maintenance and faster delivery times |
Leak Points | Reduced leak points due to absence of external rods | More potential leak points due to external tie rods |
Suitable Applications | High-pressure, harsh environments | Applications requiring quick serviceability |
Note: Welded cylinders are picked when strength and toughness are very important.
Performance Comparison
How well a cylinder works depends on how it handles load, pressure, and strength. Welded hydraulic cylinders can take higher pressure, sometimes over 5,000 psi. Their strong build keeps them from bending or breaking, even with heavy use. This makes them good for hard jobs where piston rod welded hydraulic cylinders must be strong and reliable. Tie-rod cylinders are better for medium or light work. Their rods can stretch, which can make them fail sooner and not last as long.
Performance Metric | Tie-Rod Cylinders | Welded Cylinders |
|---|---|---|
Pressure Capability | Suitable for medium to light-duty applications; lower pressure tolerance | Can withstand higher pressures, often >5,000 psi |
Durability / Service Life | Lower service life due to potential tie-rod stretch | Longer service life; rugged design withstands harsh conditions |
Design Compactness | Larger, less compact due to external tie rods | Compact design suitable for mobile machinery |
Maintenance & Repair | Easier and less costly to maintain and repair | More complex repairs requiring special tools |
Welded cylinders are less likely to fail in tough places. Their small size helps them fit in tight spots. Piston rod welded hydraulic cylinders are best for jobs that need high strength, few leaks, and long life. Tie-rod cylinders are easier to fix but are not as strong. When picking a cylinder, engineers look at load, pressure, and how likely it is to break. Welded hydraulic cylinders are usually better at handling strength, pressure, and tough jobs. This is why they are chosen for heavy-duty and high-pressure work.
Piston Rod Welded Hydraulic Cylinders
Application Areas
Piston rod welded hydraulic cylinders are very important in big machines. They are used in many different jobs and industries. Engineers pick them when machines need to be strong and reliable. These cylinders are also good when space is tight. The table below shows where these cylinders are used most:
Industry Category | Example Equipment / Applications |
|---|---|
Agricultural | Various agricultural machinery and equipment |
Construction | Excavators, bulldozers, cranes |
Material Handling | Forklifts, clamping equipment |
Truck Equipment | Dump trucks, hydraulic jacks |
Waste | Equipment used in waste management |
General Applications | Elevators, hydraulic jacks, cranes, clamping equipment |
These cylinders help machines lift, push, and move heavy things. In construction, they power machines like excavators and cranes. In farming, they work in tractors and harvesters. Forklifts and other material handling tools use these cylinders to work safely. They are also used in trucks and waste equipment. This shows they can do many jobs. Because they are small and welded, they fit into tight spaces. This makes them great for new types of machines.
Advantages
Piston rod welded hydraulic cylinders have many good points for hard jobs. Their welded build makes them strong and tough. They work well even when things get rough or heavy. Welding the barrel to the end caps makes them smaller and stronger.
They are strong and last a long time, so they are good for hard work.
Good seals help stop leaks and make the system work better.
They move things smoothly and use energy well.
You can change them to fit special jobs.
They are easy to take care of, so you save time and money.
They can handle very high pressure without breaking.
They do not wear out or rust easily, even in bad weather.
Their small size helps them fit where space is tight.
These cylinders are also great for machines that move, like trucks and tractors. They can take a lot of pressure and are built to last. This is why people use them in building and farming machines. They work well for a long time, even if used a lot. As machines need to do more, these cylinders are used in more places.
High-Pressure Welded Hydraulic Cylinders
Material Selection
Engineers pick materials for high-pressure welded hydraulic cylinders very carefully. These cylinders must work well under strong pressure and heavy weight. The team chooses materials that are strong, last long, and are safe. Yield strength is very important. For example, AISI 4140 steel is often picked because it has a yield strength of 110,000 psi. This steel gets special heat treatment to make it even stronger and tougher.
Sometimes, engineers use custom open-die forging instead of welding. This method removes weld seams and makes the cylinder stronger. Before making the cylinder, engineers study stress and material properties. They check how strong the metal is, how it is treated with heat, and what it is made of. If the cylinder will be in a harsh place, it needs to resist rust. Thread treatment helps stop galling, which protects the cylinder when pressure is high. The seal design must handle strong squeezing to keep the cylinder working. Engineers work with suppliers to make sure each cylinder can handle the right pressure and load.
Tip: Custom forging lets engineers join parts into one strong piece. This makes high-pressure welded hydraulic cylinders more exact and reliable.
Safety and Durability
Safety is very important for high-pressure welded hydraulic cylinders. These cylinders face strong pressure and heavy loads every day. Engineers design them to stop leaks and failures. They use special seals that can handle high pressure. Regular tests check for cracks, weak spots, and how well the seals work. Each cylinder must pass tough safety rules before it is used.
How long the cylinder lasts depends on the material and design. High-pressure welded hydraulic cylinders use strong metals and special coatings to stop wear and rust. The welded build has fewer places for leaks and is more reliable. Engineers watch how the pressure and load change to guess when parts might wear out. They change seals and check barrels to keep the cylinder strong and safe. Taking care of the cylinder helps it last longer and keeps machines safe.
Note: High-pressure welded hydraulic cylinders are best for places with lots of pressure and heavy loads. Their design helps them last long and work well.
Maintenance and Troubleshooting
Best Practices
Taking care of welded hydraulic cylinders helps them work well. It also stops them from breaking. Operators should check and care for cylinders on a regular schedule. These steps help keep cylinders working their best:
Look at rods every day and week. Check for twisting or damage. A smooth rod helps seals last longer.
Check hydraulic fluid often. Clean fluid keeps the cylinder safe from dirt and thick oil.
Clean the hydraulic system often. Take out dirt to stop clogs and damage.
Put oil on moving parts at set times. Use special oil for hydraulic systems to lower friction.
Test oil quality. Check if it is thick, clean, and dry. Finding problems early stops breakdowns.
Look at rod and cylinder surfaces. Smooth surfaces lower friction and leaks. This helps cylinders last longer.
Use coatings like chrome plating. These coatings make cylinders stronger and help stop damage.
Plan big checkups and change seals every few months or each year. Changing seals often lowers the chance of breakdowns.
Tip: Doing regular care helps stop surprise breakdowns and keeps cylinders working well.
Common Issues
Operators sometimes see problems that can make welded hydraulic cylinders break. Finding these problems early helps stop long repairs. The most common problems are:
Air in the hydraulic system makes hissing or gurgling sounds. Getting rid of air stops breakdowns.
Low hydraulic fluid makes whining or groaning sounds. Adding more fluid stops problems from not enough oil.
Dirty fluid causes grinding or chattering. Cleaning or changing fluid stops damage from dirt.
Broken or worn parts make clunking or banging sounds. Changing these parts stops more damage.
Bad cylinder alignment causes rubbing or scraping. Fixing the cylinder helps stop breakdowns.
Problems inside the cylinder make knocking or rattling. Fixing or changing inside parts solves the problem.
Pump problems make high-pitched whining or bubbles. Fixing the pump stops pressure problems.
Too much pressure makes loud noise and shaking. Lowering pressure and checking valves stops damage.
Common Issue | Symptoms/Indicators | Resolution/Action Taken |
|---|---|---|
Air in Hydraulic System | Hissing or gurgling noises | Bleed the system to remove air |
Low Hydraulic Fluid Level | Whining or groaning noises | Check and replenish fluid levels |
Contaminated Hydraulic Fluid | Grinding or chattering sounds | Replace or filter the fluid |
Worn or Damaged Components | Clunking or banging noises | Inspect and replace worn parts |
Improper Cylinder Alignment | Rubbing or scraping sounds | Realign and securely mount the cylinder |
Internal Cylinder Problems | Knocking or rattling noises | Inspect and repair or replace internal components |
Pump Issues | High-pitched whining or cavitation | Address cavitation and service the pump |
Over pressurization | Excessive noise and vibrations | Adjust system pressure and check relief valve |
Operators should also look for setup problems. Wrong threads, bad port angles, and tight spaces can cause trouble. Checking setup details and drawings helps stop these problems. Talking with suppliers helps make sure the cylinder is set up right and lowers the chance of breakdowns.
Note: Finding problems fast and fixing them quickly helps keep cylinders safe and working well.
Installation and Operation
Installation Tips
Putting in welded hydraulic cylinders the right way helps them work well and last longer. Technicians should check if the mounting surface is flat and clean before starting. Clean surfaces help stop leaks and keep things lined up. Use the right bolts and tighten them as the maker says. Make sure all fittings are tight so nothing shakes or moves when working.
Line up the cylinder with the load. If it is not lined up, the piston rod can wear out or bend. Always check if the rod moves all the way without getting stuck. Add dust wipers or rod covers if there is dirt around. These protect the seals and help the cylinder last longer. Before hooking up hydraulic lines, clean them to get rid of dirt. Fill the system with clean fluid that the maker recommends. Get rid of air in the system so the cylinder does not act strange.
Tip: After you put in the cylinder, move it a few times at low pressure. This helps you find leaks and makes sure it works smoothly before using it for heavy jobs.
Operating Conditions
How you use welded hydraulic cylinders changes how well they work and how long they last. Hot or cold temperatures, lots of heavy work, and rough places need extra care. The table below shows important things to think about:
Operating Condition | Impact on Hydraulic Cylinder Performance | Key Considerations |
|---|---|---|
High Temperature | Makes seals wear out faster; oil gets thin; metal can change | Use seals that handle heat; pick oil that works in heat; think about metal strength |
Low Temperature | Seals get hard and break; oil gets thick and does not flow well | Use seals that handle cold; pick thin oil; let things warm up before starting |
Load Cycles (Static/Dynamic/Impact) | Fast or hard loads can bend rods or break parts if not built for it | Study the loads; pick strong materials; build for hard hits |
Environmental Factors (Dust, Corrosion) | Dust can hurt seals and surfaces; chemicals can damage parts | Use dust covers and wipers; pick materials and coatings that do not rust |
Material Selection | Weak materials can bend or break; wrong seals can leak fast | Match materials to the job; make sure seals work with the fluid and temperature |
Technicians should check temperature and fluid often. Hot weather makes seals wear out and oil thin. Cold weather makes seals break and oil thick. Both can hurt the cylinder if not watched. Heavy or fast work puts more stress on the rod and barrel. Picking the right materials and seals for the job helps stop problems. Dust and chemicals can also make cylinders wear out faster, so covers and coatings are important.
Note: Checking and fixing cylinders often, and paying attention to how they are put in and used, helps them last longer and work better.
Welded hydraulic cylinders are very strong and reliable. They are used in building and infrastructure jobs. Engineers pick piston rod welded hydraulic cylinders because they are small and tough. These cylinders can handle high pressure and last a long time. They help lift heavy things in hard places. Using the right materials and good welding makes them stronger. It also helps stop leaks. Operators should check the cylinder details before putting them in. They can look at manuals or ask makers for help.
Piston rod welded hydraulic cylinders are important in infrastructure. They work well when high-pressure welded hydraulic cylinders must handle tough jobs.
Key advantages:
Very strong and last long
Fewer places for leaks
Can be changed for special jobs
Часто задаваемые вопросы
What makes welded hydraulic cylinders more durable than tie-rod cylinders?
Welded hydraulic cylinders have fewer places where parts join. This means there are less spots for leaks to happen. The welded joints make the cylinder stronger. Welded cylinders can take more pressure and heavy weight than tie-rod cylinders.
How often should operators inspect welded hydraulic cylinders?
Operators need to look at cylinders every day for damage. Each week, they should check for leaks or worn parts. Checking often helps find problems early. This makes the cylinder last longer.
Can welded hydraulic cylinders be customized for special applications?
Yes, makers can change welded hydraulic cylinders in many ways. They can use different ports, mounts, or coatings. These changes help the cylinder work in special machines or tough places.
What materials work best for high-pressure welded hydraulic cylinders?
Engineers pick AISI 4140 steel or stainless steel most times. These materials are strong and do not rust easily. Chrome plating is used to protect the cylinder from wearing out.
Are welded hydraulic cylinders easy to repair?
Welded cylinders are harder to fix than tie-rod ones. The welds cannot be taken apart easily. Special tools and skills are needed to open them. Most repairs are for seals or the outside surface.
