Hydraulic Cylinder Seals: A Simple Guide to Their Types

Hydraulic cylinder seals come in various types of hydraulic cylinder seals, primarily divided into two main groups: static and dynamic. Static seals, like O-rings, prevent fluid leaks where parts remain stationary. Dynamic seals, such as piston and rod seals, function with moving parts to block leaks and keep out dirt. Choosing the right types of hydraulic cylinder seals ensures the system operates efficiently, lasts longer, and requires less maintenance. The main types of hydraulic cylinder seals include static, piston, rod, wiper, buffer, guide rings, backup rings, and rotary seals. Each type of hydraulic cylinder seal plays a specific role in the cylinder, helping to keep hydraulic systems safe and running smoothly.

Key Takeaways

• Hydraulic cylinder seals have two main types. Static seals are for parts that do not move. Dynamic seals are for parts that move. Both types stop leaks and keep the system safe.

• Picking the right seal type and material is important. You must think about pressure, temperature, and fluid. This helps seals last longer and leak less. It also helps machines work better.

• Some common seal types are piston seals and rod seals. There are also wiper seals, buffer seals, guide rings, backup rings, and rotary seals. Each one has a special job in the hydraulic system.

• You need to install seals the right way. You should also clean and check seals every year. This stops leaks and lowers wear. It helps hydraulic systems work well.

• The right seal material is important too. Polyurethane is good for high pressure. FKM works well for high heat. Using the right material makes seals last longer and keeps things safe.

Classification of Hydraulic Cylinder Seals

Hydraulic cylinder seals are put into two groups: static seals and dynamic seals. This grouping helps engineers and workers pick the right seal for each part of a hydraulic system. The kind of seal you use changes how well the system holds pressure, stops leaks, and works over time.

Tip: Picking the right hydraulic seal for each job helps parts last longer, stops leaks, and keeps the hydraulic cylinder working well.

Static Seals

Static seals are used between parts that do not move. These seals keep fluid from leaking out where there is no movement. O-rings are a common example, used between flanges or end caps. Since there is no movement, static seals usually last longer and need less fixing. They can handle parts that do not line up perfectly and do not get hot from rubbing.

Characteristic	Static Seals	Dynamic Seals
Motion	No movement between sealing surfaces	Continuous movement between sealing surfaces
Material Selection	Softer, less tough materials (like silicone) work well	Tough, slippery materials (like FKM rubber) are needed
Maintenance	Lasts longer because parts do not move	Wears out faster, needs more fixing because of rubbing
Gland Design	Can handle more squeezing, surface finish is not as important	Needs careful design to stop wear, less squeezing, smooth surface needed
Tolerance to Misalignment	Can handle parts not lining up well without leaking	Needs tight fit to stop leaks and wear from movement
Heat Generation	Does not get hot because there is no movement	Gets hot from rubbing, needs to cool down to work well
Application Example	Used between still parts like pipe flanges or end caps	Used between moving parts like piston and barrel in hydraulic cylinders

Dynamic Seals

Dynamic seals are used where parts move against each other. These seals must handle sliding, turning, or back-and-forth motion. Piston seals and rod seals are common dynamic seals in hydraulic cylinders. They keep fluid inside and block dirt from getting in. Because they face rubbing all the time, dynamic seals need to be made from tough, slippery materials. These seals must be designed carefully to stop leaks and keep pressure while the system works.

• Static seals are for places where parts do not move, so there is no wear from rubbing.

• Dynamic seals are needed where there is movement, like sliding or turning.

• The type of seal you need depends on how the parts move.

• Knowing this helps you pick the right seal material, shape, and size.

• Picking the right seal stops leaks, cuts down on wear, and helps the hydraulic system last longer and work well.

The way hydraulic cylinder seals are grouped helps you pick the right types of hydraulic cylinder seals. It helps you choose the best material, shape, and use, so the hydraulic system stays safe and works well.

Types of Hydraulic Cylinder Seals

Hydraulic cylinder seals come in many shapes. Each one has a special job to help hydraulic systems work well. Knowing about the types of hydraulic cylinder seals helps people pick the right one. This can stop expensive problems. Here are the main types of hydraulic seals you will find in a hydraulic cylinder.

Piston Seals

Piston seals fit inside the cylinder. They seal the space between the piston and the cylinder wall. Their main job is to keep hydraulic fluid from leaking past the piston. This happens when the piston moves back and forth. Piston seals help keep pressure inside the cylinder. This makes sure the system works well.

• Stop hydraulic fluid from leaking around the piston.

• Help the system work better by sealing well.

• Keep dirt and other bad stuff out of the hydraulic system.

There are different kinds of piston seals:

• Single-acting seals work in only one direction. They are used in cylinders that move one way.

• Double-acting seals work in both directions. They are used in cylinders that move both ways.

• Symmetrical seals keep the sealing force steady in different situations.

Piston seals are used in many places:

• In farming, tractors and harvesters use them to stop leaks and handle tough jobs.

• In building, machines like excavators and cranes use them to keep fluid inside and work longer.

• In mining, drills and crushers use them to block dirt and rocks.

• In airplanes, they help systems work in very hot or cold places.

• In cars, they help brakes and steering work smoothly.

Note: Piston seals can break if they get dirty, too hot, too much pressure, worn down, or put in wrong. Checking them often helps stop these problems.

Rod Seals

Rod seals make a seal around the moving rod. They do this as the rod goes in and out of the cylinder. Rod seals keep hydraulic fluid inside and stop leaks along the rod. They also help keep pressure and make the system work well.

It is important to pick the right material, put them in right, and take care of rod seals. If a rod seal gets worn out or put in wrong, it can leak. This can waste fluid and hurt the hydraulic cylinder. Rod seals are used in almost every hydraulic job, from big machines to small tools.

Material	Pressure Limit (psi)	Temperature Range (°F)	Fluid Compatibility
NBR (Nitrile)	Up to 2,300	-40 to 250	Mineral oils, water, some chemicals
FKM (Viton®)	Up to 10,000	-15 to 400	Aggressive chemicals, high temperatures
Polyurethane	Up to 5,000	-65 to 220	Mineral oils, water, some chemicals
PTFE	Up to 10,000	-328 to 500	Wide range, including aggressive chemicals

Tip: Harder materials can handle more pressure but may rub more. Softer materials rub less and last longer in low-pressure jobs.

Wiper Seals

Wiper seals are also called scraper seals. They keep dirt, dust, and other bad stuff out of the hydraulic cylinder. Wiper seals sit at the opening of the cylinder. They clean the rod as it moves in and out. This keeps the inside of the cylinder and other seals safe.

Wiper seals are very important in rough places, like building sites, mines, or outdoor machines. Polyurethane wipers work well with high pressure and heat. Nitrile wipers are good with oil and cold. Fluorocarbon wipers are best with chemicals and heat.

Buffer Seals

Buffer seals protect the main rod seal. They do this by soaking up sudden jumps in pressure inside the cylinder. Buffer seals let a thin layer of oil pass through. This oil helps the rod seal and wiper move smoothly. It cuts down on rubbing and heat. This helps the rod seal last longer.

Buffer seals are used in high-pressure hydraulic systems. You will see them in heavy machines and big presses. The right buffer seal design keeps a good balance between sealing and oiling. This stops wear and helps all hydraulic cylinder seals last longer.

Guide Rings

Guide rings are also called wear rings. They keep the piston and rod lined up inside the cylinder. Guide rings stop metal parts from touching each other. This can stop damage and wear. Guide rings take side loads and spread them out. This keeps the seals and cylinder walls safe.

• Stop metal parts from touching and wearing out.

• Help keep things straight for smooth movement.

• Cut down on rubbing and spread out the load.

• Keep seals safe from side loads and rubbing.

Guide rings often have a split design. This keeps them pressed against the cylinder wall. It helps them adjust to changes in pressure or heat. This design stops things from getting out of line and wearing out unevenly.

Backup Rings

Backup rings help other seals, especially when there is a lot of pressure. They stop the main seal from being pushed into gaps. This can stop leaks or seal breaks. Backup rings are made from strong stuff like PTFE or hard rubber.

• Stop seals from being squeezed out in high-pressure jobs.

• Help main seals last longer.

• Keep seals in place and hold their shape.

• Cut down on wear and save money on repairs.

Backup rings are needed in hydraulic cylinders, pumps, valves, and even in planes and cars. They are very important when the system has high pressure or moves a lot.

Rotary Seals

Rotary seals are also called shaft seals or oil seals. They are made for spinning shafts. Rotary seals keep oil inside and stop dirt from getting in. They are used in engines, gearboxes, and big machines where parts spin.

Rotary seals are not like other hydraulic cylinder seals. They are made for spinning, not just moving back and forth or staying still. Rotary seals make a wall between the spinning shaft and the outside. This keeps the system oiled and clean.

Note: Most hydraulic seals are for parts that move back and forth. Rotary seals are special because they are for spinning parts.

Knowing about the types of hydraulic cylinder seals and what they do helps people pick the right seal for each job. This stops leaks, cuts down on wear, and keeps hydraulic systems safe and working well.

Materials for Hydraulic Seals

Common Materials

Hydraulic seals are made from many materials. Each one helps the seal do a special job. The most used materials are PTFE, polyurethane, nitrile rubber, HNBR, FKM, polyethylene, and some plastics. These materials help seals work in many hydraulic systems.

Material	Advantages	Disadvantages
PTFE (Polytetrafluoroethylene)	Handles chemicals well; slides easily; stops stick-slip; good for guide rings and backup rings	Can wear out if dry; may need extra support for high pressure
PU (Polyurethane)	Lasts long; used for piston seals, scrapers, and rod seals	Not as good with chemicals as fluoropolymers
NBR (Nitrile Butadiene Rubber)	Used for piston seals and wipers; good for many jobs	Does not handle heat or chemicals well
HNBR (Hydrogenated Nitrile)	Handles heat and chemicals better than NBR	Costs more than NBR
FKM/FPM (Fluorocarbon Rubber)	Handles chemicals and heat very well	Costs more; not as stretchy
PE (Polyethylene)	Cheap; works in cold; used for protection rings	Not very strong; does not work in high heat
POM and other plastics	Used in power hydraulic seals; properties change by type	Problems depend on the kind of plastic

Polyurethane is great for high pressure and lasts a long time. It does not wear out fast and can handle oil and ozone. Nitrile rubber bends easily and does not get hurt by oil. This makes it a good pick for many hydraulic seals.

Material Selection Impact

Picking the right material helps seals last longer and work better. The material must match the hydraulic fluid to stop leaks and make the seal last. For example, FKM works well in tests with new fluids. But in real life, it might wear out faster than NBR. NBR can last up to 1,000,000 cycles when moving, so it is very strong.

Seal materials also change how well they handle heat. Polyurethane and nitrile rubber can handle hot and cold and do not wear down fast. Fluoro rubber and silicone are good with heat and chemicals. Some seals use fabric or special metals to be stronger in tough places.

Tip: Always make sure the seal material matches the hydraulic fluid and the temperature. This helps stop leaks, early damage, and dirt from getting in.

In high pressure systems, people use polyurethane, FKM, and filled PTFE. These materials are hard but still bend a little. This helps seals last longer and stay safe under stress. Picking the right one makes seals last and keeps hydraulic machines safe.

Selecting the Right Type of Hydraulic Cylinder Seal

Key Factors

Picking the right hydraulic cylinder seal depends on many things. Each thing changes how well the seal works and how long it lasts. The table below lists the main things to think about:

Key Factor	Why It Matters
Pressure and Load Cycles	Seals must handle high pressure and lots of changes. PTFE and polyurethane are strong and last a long time.
Temperature Range	Seals need to stay soft in hot and cold places. FKM is good for heat, and NBR works for normal temperatures.
Fluid Compatibility	The seal material must not swell or break in fluid. NBR is good with oil, and PTFE works with strong chemicals.
Friction and Wear	Low friction and strong seals last longer. Polyurethane and PTFE help moving parts wear less.
Size and Fit	The right size stops leaks and early damage. Measuring carefully is important for a good seal.
Cleanliness and Lubrication	Clean parts and the right oil help seals last. This keeps them safe during installation.

Hydraulic seals must match the system’s pressure, temperature, and fluid. High pressure needs tough seals that do not get pushed out. Seals also keep pressure in and dirt out. Picking the right seal is very important. It stops leaks and keeps the system from breaking.

Application Matching

Using the right seal for each job helps it last longer and work better. Here are steps to pick the best seal:

1. Find out what the job is and how it works. Look at pressure, temperature, and speed.

2. Pick the right seal type—rod, piston, wiper, or static—based on how it moves.

3. Choose materials that do not wear out or get hurt by chemicals or heat. Polyurethane is good for high pressure. PTFE is best for strong chemicals.

4. Make sure the seal size fits the machine exactly.

5. Check charts from the maker to see if the seal works with the fluid.

6. Test the seal in real life if you can to make sure it works.

Tip: Always keep everything clean and use the right oil when putting in seals. This helps them last longer and stops leaks.

Picking the right hydraulic cylinder seal helps the system work well in every job. Good choices mean seals last longer, break less, and keep machines safe.

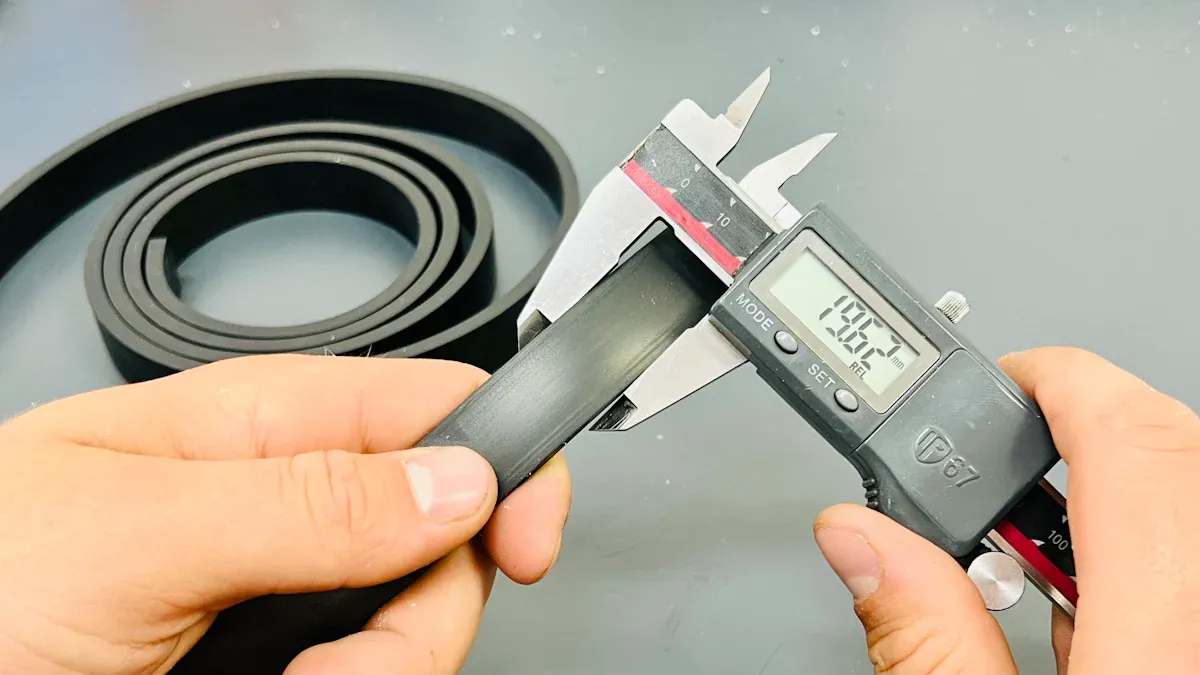

Installation and Maintenance of Hydraulic Seals

Installation Tips

Putting in hydraulic seals the right way stops leaks and blowouts. It also helps the seals last longer. When putting on a new hydraulic cylinder seal, workers need to be careful. They must follow steps to keep pressure and avoid damage. Here are the main steps:

1. Turn off the hydraulic system and put on safety gear.

2. Take out the cylinder and take it apart slowly.

3. Remove old seals with the right tools. Clean all parts to get rid of dirt.

4. Put oil on new seals that works with hydraulics.

5. Use special tools to press and place seals without twisting them.

6. Put seals in gently. Make sure they sit right and face the right way.

7. Put the cylinder back together. Tighten parts as the maker says.

8. Put the cylinder back and hook up hoses.

9. Slowly turn on the system and look for leaks or blowouts.

Some common mistakes are using the wrong tools or twisting the seals. Not checking the surface can also cause problems. To stop leaks and repairs, workers should:

• Check tools for damage before using them.

• Do not twist or bend the seals.

• Follow the maker’s rules for grooves and surfaces.

• Keep the work area clean to stop dirt from getting in.

Tip: Training everyone on how to put in seals helps stop mistakes and keeps leaks away in hydraulic systems.

Maintenance Best Practices

Doing regular checks helps seals last longer and stops repairs. Workers should look at seals and rods for wear, rust, or marks. Finding cracks or hard spots early stops leaks and blowouts.

Good ways to care for seals include:

• Use oil made for hydraulics to lower rubbing and wear.

• Keep rods and cylinders smooth to stop seal damage.

• Add coatings like chrome to make parts last longer.

• Check the oil and keep it clean to stop dirt.

• Look for leaks and add oil if needed.

• Do not let rods move sideways to stop seals from failing.

Every year, check piston and rod seals. If you see too much oil or leaks, you may need new seals. Oil rods after washing or long breaks to stop rust. Clean oil and good filters keep dirt out and help seals last longer.

Note: Checking seals often and fixing them right away lowers the chance of failure and keeps pressure in the system. There is no exact time to change hydraulic cylinder seals, but yearly checks and oil care are a good idea.

Hydraulic cylinder seals have different types. Each type has special features. Things like seal squeeze, compression set, and material choice matter a lot. These things help seals stop leaks and last longer.

Picking the right seal can stop repair problems. It also helps machines work for more time. To get the best results, workers should use good repair kits. They should follow checklists for maintenance. It is smart to get help and training from trusted suppliers.
