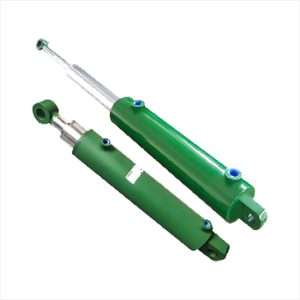

Understanding the Working Principle of Telescopic Hydraulic Cylinders

Key Takeaways

• Telescopic hydraulic cylinders have many tubes inside each other. The tubes slide out one at a time. This lets them reach far from a small space.

• Hydraulic pressure pushes the tubes out in order. Seals and bearings help the tubes move smoothly. They also stop leaks from happening.

• Single-acting cylinders use pressure to push out. Gravity pulls them back in. Double-acting cylinders use pressure both ways. This gives better control.

• These cylinders save space and can move very far. They are used a lot in building, farming, and big machines. They help lift and move heavy things.

• Regular care is important. You should check for leaks, clean the cylinder, and change seals. This keeps the cylinder safe and helps it last longer.

Telescopic Hydraulic Cylinder Components

Barrel and Stages

The barrel and stages make up most of the telescopic hydraulic cylinder. The barrel holds all the stages inside it. Each stage fits inside the next one, like Russian dolls. When hydraulic pressure is used, the stages slide out one at a time. This design lets the cylinder stretch far but stay small when closed.

Most barrels and stages are made from strong steel, like SAE1020 or 1045. The inside is made smooth and tough with honing and chrome plating. These treatments help the cylinder last longer and stop it from wearing out. The number of stages decides how far the cylinder can reach. More stages mean it can go farther without being too long when closed.

Tip: A smooth finish and special coatings on the barrel help lower friction and protect it from damage, even when under high pressure.

Pistons and Seals

Each stage has pistons and seals inside. Pistons move when hydraulic fluid goes into the cylinder. Seals stop the fluid from leaking and keep the pressure inside. In a piston type telescopic hydraulic cylinder, every stage has its own piston and seal. This helps each stage move in and out smoothly.

There are many types of seals, like O-rings, wiper seals, and buffer seals. Good seals stop leaks, keep dirt out, and lower friction. The best seals are made from materials that do not wear out fast and can handle chemicals and water. If you pick the right seals and take care of them, your multi stage hydraulic cylinder will work well and last longer.

• Pistons help each stage move.

• Seals stop leaks and keep out dirt.

• Wiper seals clean off dirt and oil as stages move.

Ports and End Caps

Ports and end caps are important for how telescopic hydraulic cylinders work. Ports are holes where hydraulic fluid goes in or out. Where the ports are placed controls how the fluid moves and how the stages work. End caps close the ends of the barrel and keep everything inside.

End caps also hold the cylinder together and help it handle the force from hydraulic pressure. Some end caps have special parts, like rod glands, to stop leaks where the rod moves. Welded body cylinders often have ports welded right onto the barrel for better flow and custom placement.

Note: Good port placement and strong end caps help your telescopic hydraulic cylinder work well and stay safe.

Working Principle

When you know how telescopic hydraulic cylinders work, you can see how they make long strokes from a small size. Each part works because of how the hydraulic fluid moves. The main idea is the same when the stages go out or come back in.

Extension Sequence

The extension sequence shows how the cylinder gets longer step by step. When you turn on the system, hydraulic fluid goes into the cylinder. This fluid makes pressure inside. The pressure pushes on the pistons in each stage.

1. Hydraulic fluid goes into the telescopic hydraulic cylinder.

2. The pressure pushes out the biggest stage first.

3. After the biggest stage is out, the next smaller stage moves.

4. Each stage comes out in order, from biggest to smallest, until all are out.

5. Guide bearings help keep each stage straight as it moves.

6. Seals between the stages keep the pressure in and stop leaks.

7. This keeps going until the smallest stage is all the way out.

Imagine you have a stack of poker chips. If you push one end, each chip slides out one after the other.

The order the stages come out depends on their size, the flow of hydraulic fluid, and how much weight is on the cylinder. If the fluid moves too fast or the load is too light, smaller stages might move before the bigger ones finish. Engineers design the cylinder to stop this and make sure the stages come out in the right order.

Retraction Sequence

The retraction sequence is the opposite. When you want to pull the cylinder back in, the smallest stage moves first.

1. The hydraulic fluid leaves the cylinder or goes to the other side.

2. The smallest stage goes in all the way before the next bigger stage moves.

3. Each stage goes in, from smallest to biggest, until all are inside the barrel.

4. Seals and bearings help control the movement and keep the stages lined up.

5. In double-acting cylinders, hydraulic fluid pushes each stage in. In single-acting cylinders, gravity or another force pulls the stages in.

A table can help you see how extension and retraction are different:

Note: The seals and oil-transfer holes inside the cylinder help control which stage moves first.

Hydraulic Pressure Role

Hydraulic pressure is very important for telescopic hydraulic cylinders. When you add pressure, the hydraulic fluid pushes the pistons and makes the stages move out. The force is found by multiplying pressure and area. More pressure or a bigger piston area means more force.

Hydraulic pressure also changes how fast and smooth the stages move. Relief valves let out extra pressure if it gets too high. This keeps the cylinder safe and working well. In big machines, telescopic hydraulic cylinders can work at up to 3000 PSI, and some can handle even more.

Pascal’s principle explains why hydraulic pressure works so well. The pressure spreads out evenly in the fluid, so every part of the piston gets the same push. When you let go of the pressure, the cylinder can go back in, either with hydraulic force or gravity, depending on the type.

There are two main types of telescopic hydraulic cylinders based on how they use hydraulic pressure:

• Single-acting cylinders use hydraulic fluid to push the stages out. Gravity or another force pulls them back in. These are simple and cost less. You see them in dump trucks and lifting machines.

• Double-acting cylinders use hydraulic fluid to move the stages both out and in. This gives you more control and lets you move the cylinder both ways. These are used in factories and construction machines.

Tip: Always check the pressure ratings for your cylinder. Too much pressure can break the cylinder or make it leak.

The telescopic hydraulic cylinder works best when you use the right hydraulic pressure, move the stages in the right order, and have good seals and bearings. When you know these ideas, you can use and take care of your equipment better.

Types of Telescopic Hydraulic Cylinders

Single-Acting

A single acting multi stage cylinder uses hydraulic pressure to push the stages out. It needs gravity or another force to pull the stages back in. This type has a simple design with just one hydraulic port. You often see these cylinders in dump trucks, trailers, and farm machines. The simple design keeps the price low and means you need fewer valves and pipes.

Here is a table to help you see the main features:

Tip: If you need to lift and lower heavy things and gravity can help pull the cylinder in, this type is a good choice.

Double-Acting

A double acting multi stage hydraulic cylinder uses hydraulic pressure to move both out and in. You can control how fast and which way it moves. This type gives more power and speed. It helps when you need to push and pull heavy things or when gravity cannot help. You often see these cylinders in forklifts, robot arms, and big building machines.

• You can change the speed and direction both ways.

• The cylinder pushes and pulls, so it is good for jobs that repeat or need to move together.

• Controlled retraction makes it safer and lowers the chance of accidents.

Note: Double-acting cylinders are harder to build and cost more, but they give you better control and work more reliably.

Hybrid

A hybrid telescopic hydraulic cylinder mixes parts of single-acting and double-acting types. Most stages use gravity to pull in, like single-acting. One or more stages use hydraulic pressure to pull in, like double-acting. This gives you more control than single-acting but is not as complex or costly as double-acting.

• Hybrid cylinders are good for machines that need a long stroke but only need powered pull-in for some of the movement.

• You might see these in big drilling machines, where only the first stage needs hydraulic pull-in.

• This design is easier to take care of and costs less, but still gives extra control when you need it.

Hybrid cylinders give you a mix of control and simple design, so they are a smart pick for special jobs.

Applications and Benefits

Common Uses

Telescopic hydraulic cylinders are used in lots of big machines. In construction, they are in cranes, excavators, and dump trucks. These cylinders help lift heavy things with good control. They work well even when there is not much space. In farming, you find them in loaders, harvesters, and tractors. They help move big bales and crops easily. In trucks, dump trucks and trailers use these cylinders to lift and tip beds for unloading. You also see them in garbage trucks and other big work vehicles.

Tip: If you work with big machines in building, farming, or moving things, you probably use telescopic hydraulic cylinders a lot.

Key Advantages

There are many good things about using a telescopic hydraulic cylinder. The biggest is that it saves space. These cylinders can fold up small, so they fit where others cannot. When you need to reach far, the stages slide out much longer than the closed size. You can get a stroke that is five times longer than when it is closed. The design also lets you move heavy things smoothly and safely.

• Small size fits in tight spots.

• Long reach for lifting or pushing.

• Smooth and careful movement when going out or in.

• Lighter weight is good for machines that move.

Note: Telescopic hydraulic cylinders often lift better and are steadier than other lifting tools, like scissor lifts.

Challenges and Maintenance

There are some problems you might have with telescopic hydraulic cylinders. Leaks, uneven movement, and parts not lining up are common. Seals can break if dirt or heat gets in. Dirty fluid can wear out the parts and make them work worse. Sometimes, the stages do not move in the right order, which can hurt the cylinder.

To keep your cylinder working well, try these tips:

1. Check for leaks and broken parts every day.

2. Clean the cylinder and look at the fluid often.

3. Change bad seals and broken pieces right away.

4. Oil the moving parts to stop rubbing.

5. Make sure the cylinder stays straight when you use it.

Doing regular checks and care helps stop problems and keeps your telescopic hydraulic cylinder safe and working well.

You now know that a telescopic hydraulic cylinder has tubes inside each other. Hydraulic pressure helps these tubes move out and in with a lot of force. This design is good for places where there is not much room but you need to reach far. If you learn how these cylinders work and take care of them, your equipment will last longer. Doing regular checks and simple care stops leaks and damage. This makes your machines safer and better for hard work.
