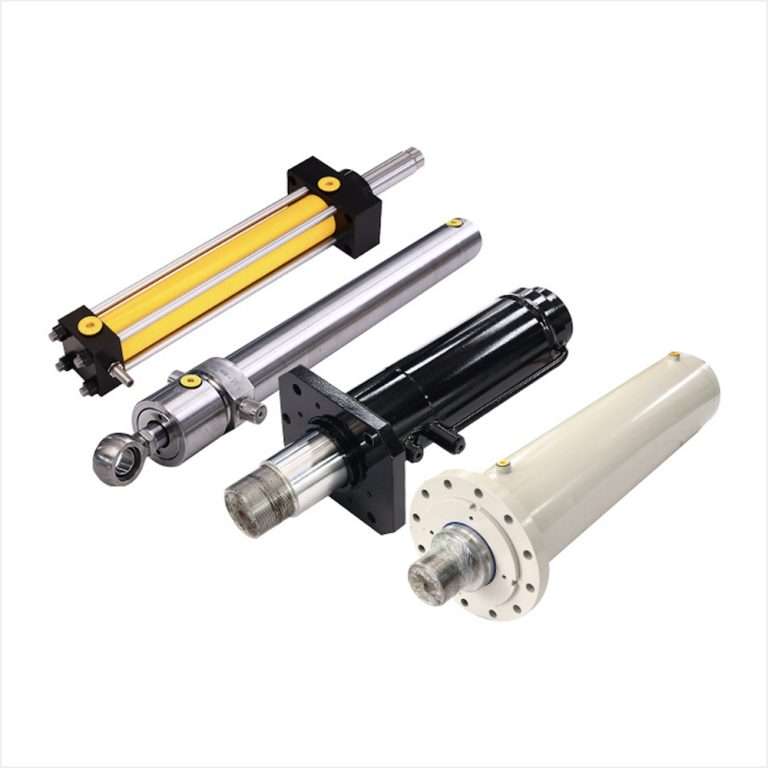

A Complete How-To on Assembling Hydraulic Cylinders

Key Takeaways

• Always wear safety gear like gloves and safety glasses to protect yourself when working with hydraulic cylinders. Make sure your workspace is clean and let out all pressure from the hydraulic system before you start any assembly or repair. Use the correct tools and parts so you do not cause damage or leaks; look at each part closely for any wear or problems before you put it together. Follow the assembly steps one at a time, like putting in seals the right way, adding oil to parts, and making sure everything lines up. Test the hydraulic cylinder after you put it together to find leaks early and do regular checkups to keep the system working well.

Safety for Hydraulic Cylinder Assembly

Personal Protective Equipment

Safety is very important when you work with hydraulic cylinders. You should wear personal protective equipment before you begin. This means you need safety glasses, gloves, and special clothes. These protect you from leaks, flying pieces, and moving parts. If you do not wear gloves or goggles, you could get hurt by fluid or sudden bursts. Masks and earplugs help keep out dust, fumes, and loud sounds.

Tip: OSHA and NIOSH make safety rules for jobs in the United States. Always follow their rules when you work with hydraulic systems.

You should check your safety gear before every job. Make sure your gloves fit and your glasses are clean. If you move heavy cylinders, wear safety shoes or boots. Do not wear loose clothes near moving parts. Training is important too. You must learn how to use tools and handle hydraulic equipment safely.

Workspace Preparation

A clean workspace helps stop accidents and keeps things working well. First, clear away clutter and wipe down your work area. Use the right cleaning steps to keep dust and oil off your tools and parts. Keep cleaning supplies close in case you spill something.

Before you start, take the pressure out of the hydraulic system. Never loosen hoses or fittings if the system has pressure. Always use lockout-tagout steps:

• Turn off the hydraulic system from all power sources.

• Let out trapped pressure both ways.

• Make sure the pressure gauge shows zero.

• Put on lockout and tagout devices so no one turns it on by mistake.

After you let out the pressure, cap or plug hose ends to stop leaks and keep dirt out. Check all connections before you turn the system back on. Only use approved tools and accessories for hydraulic work. Keep your hands, tools, and clothes away from pinch points and moving parts.

Note: Clean up oil spills right away to stop slips and keep your workspace safe.

Tools and Parts Checklist

https://www.youtube.com/embed/l5pQXsIORhI

Essential Tools

You must have the right tools for safe assembly. The correct tools help you work faster and avoid mistakes. Most companies say you should use these tools for hydraulic cylinder assembly:

1. Wrenches and pliers are used to take off nuts and bolts.

2. A hydraulic jack holds up the cylinder while you take it apart.

3. Seal drivers help you put in and take out seals of many sizes.

4. Cylinder hones clean out rust and dirt from the cylinder bore.

5. Cylinder micrometers check the bore size very carefully.

6. A torque wrench makes sure bolts and nuts are tight enough.

7. A cylinder press helps you put in pistons and glands safely.

8. Thread chasers fix and clean broken threads.

9. A seal kit has seals and o-rings for fixing leaks.

10. Safety gear like gloves and goggles keeps you safe.

Some jobs need special tools like honing machines or rebuild kits. If you use the wrong tool, you might break the piston rods or cylinder. This can cause leaks or make the system stop working. Always look at your tools before you start any hydraulic job.

Tip: Clean tools and a neat workspace stop dirt from getting in. This helps your hydraulic cylinder last longer.

Required Parts and Materials

You need to get all the right parts before you fix a hydraulic cylinder. If you miss a part or use the wrong one, you could get leaks or damage. This can also be unsafe. Here is a table that shows the main parts you need and what they do:

Essential Part	Description	Common Materials and Features
Cylinder Barrel	Main part where the piston moves; must handle high pressure; inside is smooth	Seamless steel tube, sometimes aluminum or composites; smooth inside
Piston	Changes hydraulic pressure into straight movement; has seals to stop leaks	Made from metal with seals (O-rings, U-cups, cast iron rings)

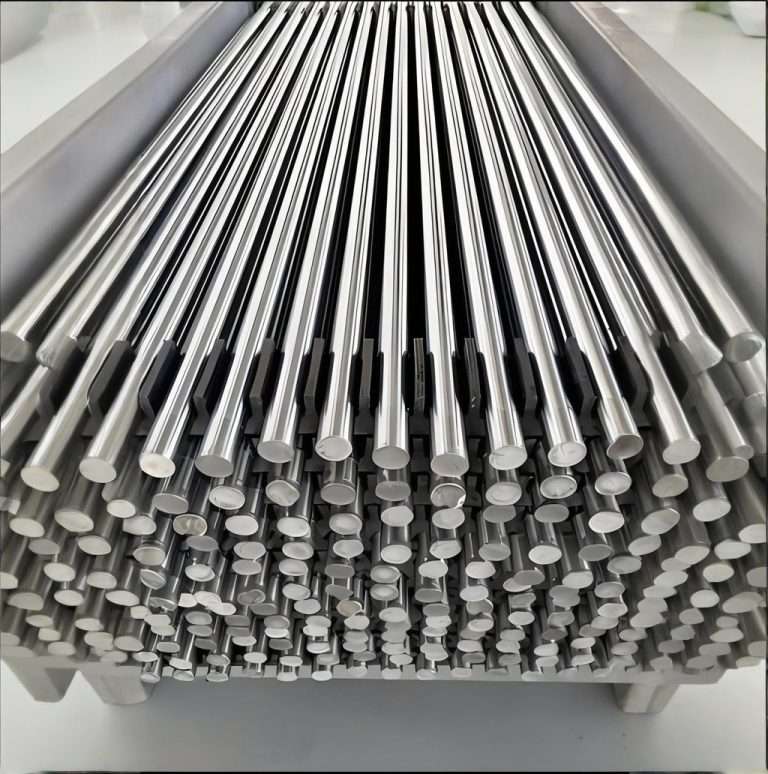

Piston Rod	Connects piston to machines outside; must be strong and smooth	Cold-rolled steel, often chrome-plated; sometimes stainless or coated for rust
Cylinder Head & Cap	End seals that keep fluid in and give ports; rod gland seals stop leaks	Metal parts; seals made from rubber, polyurethane, nitrile, viton, or cast iron
Seals and Rings	Stop fluid from leaking and keep pressure in; different types for each part	Rubber, polyurethane, nitrile, viton, cast iron; picked for fluid, heat, and pressure
Rod End and Base End	Places to attach for mounting; can be threads, flanges, or clevis mounts	Metal parts made for strong and flexible connections
Tie Rods	Outside rods that hold end caps on (in some designs)	Steel rods that make it strong and easy to fix

If you use the wrong tools or parts, seals can break and leaks can happen. You could even get hurt by high-pressure hydraulic fluid. Always check your parts list and look at each part for damage before you start.

Preparation Steps

Inspect Components

You must check every part before you put the Hidrolik Silindir together. This helps you stop problems and keeps your equipment safe. Use this checklist to help you look at each part:

1. Look at the hydraulic fluid. Make sure it is clean. If you see dirt, take a sample and send it for testing.

2. Check the hydraulic cylinder rod. Look for marks, bends, or scratches. These can hurt seals or make leaks.

3. Look at all seals and fluid lines. Check for leaks, mostly near the cylinder head. If you see dry spots, add more oil.

4. Check the cylinder tube. Look for swelling or things in the way. You can use a piston-seal bypass test to find hidden problems.

5. See if there is sideloading. If the rod is not straight, it can hurt the cylinder, especially if it is long.

Tip: Checking parts now can save you money and time later.

Clean and Organize

A clean workspace helps you put the Hidrolik Silindir together the right way. You need to keep all parts free from dirt. Follow these steps to clean and organize:

1. Make a clean work area. Take away clutter and wipe down the table.

2. Drain all hydraulic fluid from the cylinder. This keeps dirt out when you clean.

3. Change the hydraulic cylinder filters to keep things clean.

4. Take off old oil. Use wire brushes or water cleaners to check for wear.

5. Wash the cylinder with a thin fluid that matches your system. This gets rid of dirt and build-up.

6. Put new oil on all moving parts. Focus on places that rub a lot to help your hydraulic cylinder last longer.

7. Wipe off extra oil before you put the parts back together.

8. Put all clean parts on a clean table. Keep tools and parts in order so you can find them fast.

Note: Only use hydraulic fluids and oils that work with your seal materials. This stops damage and keeps your hydraulic system working well.

Cleaning and organizing often helps you stop dirt from getting in. It also makes fixing things easier later. When you do these steps, you protect your hydraulic cylinder and help it work better.

Hydraulic Cylinder Assembly Process

Install Seals and Bearings

You begin by putting in seals and bearings. This step helps stop leaks and keeps things working well. Here is how you do it:

1. Pick the right seals for your hydraulic cylinder. Think about how the system works and what it needs. Choose the best material and seal type.

2. Look at each seal. Make sure there are no cracks or cuts.

3. Clean the seals and where they will go. Take off all dirt, dust, and oil. Smooth and clean spots help seals work better.

4. Use a lubricant that matches the seal material. This helps the seals last longer and move easier.

5. Put the seals in the right spot and direction. Fit them gently into the grooves. Do not twist or break the seals when you put them in.

6. When you finish, check the hydraulic cylinder for leaks. Good seals keep the system safe and working well.

Tip: Always use clean hands or tools to touch seals. Dirt or oil can cause leaks and make things work worse.

Lubricate Moving Parts

Lubrication is very important for hydraulic cylinder assembly. You need to use the right lubricant so parts move easily and do not wear out. Here are some common lubricants and why they are good:

• Grease with lithium, calcium, or polyurea is good for bearings, seals, and sliding parts. Grease stays put and keeps out dirt.

• Hydraulic oils are stable and slippery. They help move power and keep things cool.

• Water-based fluids are used where there is fire danger, but they do not work as well as oils or grease.

When you pick a lubricant, think about how thick it is, the temperature, the load, and if it works with your system. Grease is best for slow or hard-to-reach parts. Some grease has things in it to help with high pressure or rust. Lubrication helps your hydraulic cylinder work better and last longer.

Note: Always use lubricants that match your seal and bearing materials. This stops damage and helps your hydraulic cylinder last longer.

Assemble Piston and Rod

Now you put the piston and rod together. This step connects the moving parts inside the hydraulic cylinder. First, clean the piston and rod. Take off any dirt or old oil. Put the piston on the rod and make sure it fits tight. Use the right tools so you do not hurt the threads or surfaces.

Check if the piston and rod are lined up. If they are not, it can cause wear and make things work worse. Use guiding units and brackets to hold the parts in place. Attach the piston rod to the guiding unit so it moves easily. Tighten bolts evenly to keep everything straight.

Tip: Using trunnion or clevis mounts helps stop bending and side loads. This makes your hydraulic cylinder work better and last longer.

Insert into Cylinder Tube

Next, put the piston and rod into the cylinder tube. Clean the tube first to get rid of any dirt. Line up the piston rod with the tube opening. Use guiding units or brackets to help line things up. This stops damage and binding.

Push the piston and rod into the tube slowly. Make sure the seals do not twist or get pinched. Hold the assembly with mounting brackets. Tighten bolts slowly and evenly. Test the piston rod to see if it moves smoothly. It should not stick.

Note: Lining things up right in this step is important. It helps things work well and stops early wear.

Secure End Caps and Fittings

Finish by putting on the end caps and fittings. Place the end caps on the cylinder tube. Use a torque wrench to tighten bolts to the right level. This keeps the cylinder sealed and safe.

Attach all fittings and hoses. Put plugs and caps on any open ports. This keeps dirt and water out of the hydraulic system. Always keep ports closed when not in use. After you finish, check all connections for leaks.

Alert: Never leave ports open while you work. Dirt can get in and hurt your hydraulic cylinder.

A clean and careful hydraulic cylinder assembly helps things work better and last longer. Always follow these steps and use the right tools for the best results.

Test and Rebuild a Hydraulic Cylinder

Pressure Test

You must pressure test every hydraulic cylinder after you put it together. This step checks if your rebuild a hydraulic cylinder job worked. First, look at the design and know the working pressure. Most tests use hydrostatic methods. Fill the cylinder with oil or water. Then pressurize it to about two times the normal working pressure. This extra pressure helps you find weak spots.

Here are the steps for a safe pressure test:

1. Put on personal protective equipment and set up safety barriers.

2. Clean the system and check for dirt or leftover parts.

3. Use calibrated gauges and sensors to watch the pressure.

4. Slowly raise the pressure to the test level.

5. Hold the pressure for the time in the manual.

6. Watch for leaks or drops in pressure.

7. If you see no leaks, mark the cylinder as passed.

8. If you find leaks, stop the test and plan a repair.

9. After testing, safely let out the pressure and remove test equipment.

Pressure Type	Description	Typical Value
Working Pressure	Normal safe operation	2,500 PSI (example)
Testing Pressure	Used during testing	Up to 2x working pressure
Burst Pressure	Failure point, not for testing	4x working pressure

Note: Always follow safety rules. High-pressure hydraulic fluid leaks can hurt you.

Check for Leaks

After you rebuild a hydraulic cylinder, you must check for leaks. Look for oil around seals and fittings. Listen for hissing sounds or watch for slow movement. You can use a pressure test to find leaks inside the cylinder. Extend the rod, add pressure, and see if oil comes from the wrong port. If you see hydraulic fluid leaks, you may have worn seals or damaged rods.

Common causes of leaks are:

• Worn or damaged piston o-rings

• Internal bypassing past seals

• Barrel or valve wear

Fixing leaks right away stops bigger problems. If you find leaks, repair or replace bad parts before using the cylinder.

Troubleshooting

If your rebuild a hydraulic cylinder project fails the pressure test, you need to troubleshoot. Start by checking for worn seals or scratched rods. Make sure the hydraulic system pressure is correct. Test for internal bypass by watching for fluid moving between chambers. Clean the hydraulic fluid and get rid of air bubbles.

Here are the steps to repair:

1. Check seals and rods for damage.

2. Replace any worn or broken parts.

3. Retest the cylinder after each repair.

4. If leaks or problems keep happening, get professional help.

You should call a professional if you see leaks that will not stop, hear strange noises, or notice odd cylinder movement. Slow performance or pressure changes also mean you need expert hydraulic cylinder maintenance. Professional repair makes sure your hydraulic cylinder works safely and lasts longer.

You can put together hydraulic cylinders safely if you follow each step. Use the right tools for every part of the job. Always look at the parts before you start. Clean all the surfaces well. Use the right lubrication so leaks do not happen. Experts say custom solutions and careful work help stop leaks. This also makes the system work better. Check your cylinder often and test it to find leaks early. Doing regular maintenance, like checking oil and cleaning, stops leaks from causing harm. The table below lists jobs that help you stop leaks and keep your system strong:

Interval	Key Tasks to Prevent Leaks
Regular	Oil analysis, filter changes, inspect for leaks
Semi-Annual	Detailed inspection, replace worn parts, test leaks
Annual	Full overhaul, replace seals, flush system

Watch for leaks and fix them fast. If a leak will not stop, get help from a professional.
