A Complete Guide to Custom Hydraulic Cylinder Types

Hydraulic Cylinder Basics

What They Are

Hydraulic cylinders are important parts in many machines. They use fluid under pressure to make things move in a straight line. Most hydraulic cylinders have a few main pieces. These are the piston, the cylinder housing, the rod end, and the head end. When fluid goes into the cylinder, it pushes the piston. This makes power to lift, push, or pull heavy things.

There are different kinds of hydraulic cylinders. Some common ones are single-acting, double-acting, differential, nondifferential, ram-type, and piston-type. Each kind works in its own way. For example:

• Single-acting cylinders move one way with fluid pressure. They go back with a spring or gravity.

• Double-acting cylinders use fluid to move the piston both ways.

• Differential cylinders have different piston sides, so they move at different speeds.

• Ram-type cylinders have a big rod and are good for pushing.

• Piston-type cylinders can push and pull.

Some hydraulic cylinders are cushioned or lockout types. Cushioned cylinders slow down at the end to stop damage. Lockout cylinders can stay in place and help absorb shocks.

Customization Options

Manufacturers give many ways to change hydraulic cylinders. These choices help them work for different jobs. The table below shows some common ways to customize:

Customization Aspect	Details / Examples
Cylinder Types	Single-acting, Double-acting, Heavy-duty, Welded, Telescopic, Mill-duty, High-pressure
Mounting Options	Clevis, flange, foot, lug, trunnion, spherical, threaded, center, side, pivot
Bore Size	Wide range, up to 55 inches for mill duty cylinders
Stroke Length	Customizable for each application
Port Size & Location	Any size or position around the tube
Materials	Steel, stainless steel, aluminum, heat and corrosion-resistant options
Components	Custom pistons, rods, tubes, welded end caps, welded ports

Custom hydraulic cylinders need special design steps. Engineers and manufacturers pick the right pressure, size, and materials. They use computers and tests to make sure each cylinder is safe and high quality. These steps help the cylinder last longer and work better in hard jobs.

Tip: Customizing hydraulic cylinders helps them fit special machines and places. This makes them work better and safer.

Types of Hydraulic Cylinders

The fluid power industry uses many types of hydraulic cylinders. Each type is made for a special job or place. Some are standard, and some are made for special uses. Knowing the differences helps people pick the right one.

Single-Acting Cylinders

A single-acting hydraulic cylinder uses fluid to push the rod out. A spring or outside force pulls it back in. This design gives strong force but only for short moves. Makers use strong materials like carbon steel to make them last.

Key Features:

• Simple build

• Strong force

• Small size

• Easy to set up

Common Applications:

• Hydraulic jacks

• Dump truck beds

• Cranes and excavators

• Snow plows

• Industrial presses

Single-acting cylinders are used in building, mining, farming, and factories. They are good and not too expensive for jobs that need force in one way.

Double-Acting Hydraulic Cylinders

Double-acting hydraulic cylinders have ports at both ends. Fluid moves the piston both ways. This lets you control the movement and makes it faster.

Advantages:

• Control both ways

• Faster work

• Strong force with less power

• Moves with care

Typical Uses:

• Car tilt trailers

• Lifts and presses

• Automation systems

• Heavy machines

Double-acting hydraulic cylinders are used where careful lifting and lowering is needed. These are found in cars, planes, and moving heavy things.

Double-Ended Cylinders

Double-ended cylinders have rods on both sides of the piston. This gives the same force and speed in both ways.

Benefits:

• Even movement

• Smooth and steady

• Good control

Applications:

• Forklifts

• Excavators

• Bulldozers

• Material handling equipment

These cylinders are needed in building, mining, and farming. Machines need even force and steady motion.

Telescopic Cylinders

Telescopic cylinders have tubes inside each other. They stretch out in steps, so they can reach far from a small size.

Key Features:

• Many sleeves inside

• Long reach from small start

• Can be single-acting or double-acting

Benefits:

• Saves space

• Lifts heavy things

• Extends and pulls back fast

• Can be changed for different jobs

Common Uses:

• Dump trucks (for big tilts)

• Cranes and lifts

• Oil and gas tools

• Waste trucks

Telescopic cylinders are best for tight spots and hard jobs that need long reach.

Piggyback Cylinders

Piggyback cylinders put two cylinders next to each other. This makes the stroke longer but does not use much space.

Advantages:

• Longer reach in small space

• Both move together

Typical Applications:

• Moving materials

• Building machines

• Industrial presses

Piggyback cylinders help when you need a long stroke but do not have much room.

Tandem Cylinders

Tandem cylinders put two cylinders in a line to make more force.

Performance Advantage	Explanation	Relevance to Heavy Machinery
Increased Force Output	Two chambers work together for more force.	Makes machines stronger in small spaces.
Enhanced Control and Precision	Two chambers let you move with care.	Needed for careful work in big machines.
Improved Reliability	If one part breaks, the other still works.	Less time lost if something goes wrong.
Versatile Operation Modes	Each chamber can work alone or together.	Good for many kinds of jobs.
Compact Design	Strong force in a small size.	Helps when space is tight.

Tandem cylinders are used in building and factory machines that need strong force and careful moves.

Smart Cylinders

Smart cylinders have electronic parts and sensors. These let you watch and control the movement as it happens.

Features:

• Electronic sensors for position

• Better control of movement

• Gives data right away

Benefits:

• Works better

• Can be changed for new needs

• Saves energy

Smart cylinders are used in robots, automation, and places that need careful control.

Tie-Rod Cylinders

Tie-rod cylinders use rods outside to hold the ends on. This makes them lighter and easy to fix.

Features:

• Rods outside for support

• Easy to take apart and fix

• Saves money

Applications:

• Factory automation

• Manufacturing

• Low and medium pressure systems

Tie-rod cylinders are best for jobs with not too much pressure and where fixing is important.

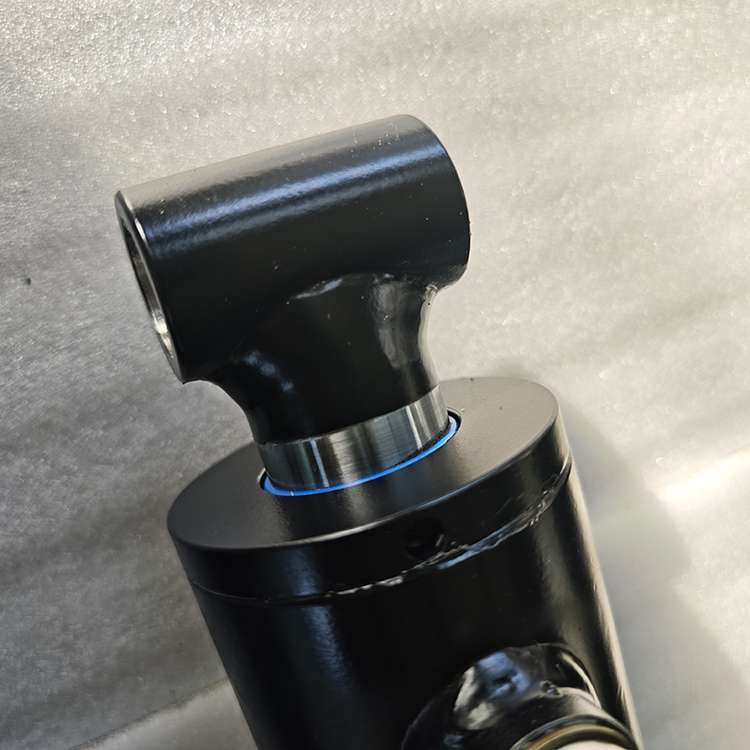

Welded Cylinders

Welded cylinders have ends welded to the barrel. This makes them strong and small.

Benefits:

• Lasts long and is strong

• Handles high pressure and heavy loads

• Small size for tight places

• Can be changed for many jobs

Limitations:

• Harder and more costly to fix

Welded cylinders are good for building, farming, oil and gas, and tough jobs.

Heavy-Duty Cylinders

Heavy-duty cylinders are made for the hardest jobs. They use thick steel, big pistons, and special seals.

Specification Aspect	Details
Operating Pressure	Up to 5,000 PSI
Bore Sizes	Up to 20″
Stroke Lengths	Up to 300″
Materials	Carbon, Alloy, Stainless Steel
Sectors	Oilfield, manufacturing, mining

These cylinders work in steel mills, foundries, mining, and other rough places.

Back-to-Back Cylinders

Back-to-back cylinders, also called piggyback cylinders, put two cylinders together. Their rods move together, so you get a longer stroke without making the cylinder longer.

Advantages:

• Small size

• Can handle high pressure

• Spreads force evenly

Applications:

• Cranes

• Forklifts

• Truck loaders

• Industrial presses

Back-to-back cylinders are good for tools that need to reach far but do not have much space.

Duplex Cylinders

Duplex cylinders link more than one cylinder in a row. Each piston can move on its own, so you get different stroke lengths.

Benefits:

• Many fixed stroke choices

• More force without bigger bore

• Good for automation

Duplex cylinders are used in systems that need different and careful moves.

Through-Rod Cylinders

Through-rod cylinders have a rod that goes through both ends. This gives the same force and speed both ways.

Features:

• Even force both ways

• Smooth and careful movement

• Strong build

Applications:

• Pick-and-place machines

• Robotic arms

• Conveyor systems

Through-rod cylinders are needed for jobs that must move with care and stay steady.

There are many types of hydraulic cylinders, from single-acting to smart ones. This lets engineers pick the best one for each job. Picking the right type makes work safer, better, and more reliable in every field.

Custom Hydraulic Cylinder Types Features

Key Features

Custom hydraulic cylinders have many features that help them work in different machines. Engineers pick the right bore size for each job. The bore size tells how much force the cylinder can make. Bore sizes are usually between 1 inch and 10 inches. The rod diameter and what it is made of are important too. Thicker rods can hold more weight and last longer. Rods are made from strong stuff like nitro steel or induction-hardened steel. Stroke length is another big feature. It shows how far the cylinder can move something. Some cylinders can move things up to 20 feet. Operating pressure is also key. Many custom cylinders can handle up to 5,000 PSI. This makes them safe for heavy work.

Other features are:

• Custom hole sizes and port spots for easy setup

• Special seals that work in high pressure, heat, or cold

• Mounting choices like clevis, flange, or trunnion

• Coatings and materials that stop rust and wear

• Custom manifolds and fittings for better building

Note: Things like temperature, pressure, and fluid type can change how well hydraulic cylinders work and how long they last.

Advantages

Custom hydraulic cylinders have many good points over regular ones. They fit the machine just right, so you do not need to change things after putting them in. This perfect fit helps the machine work better and saves time. Custom cylinders use the right port types and spots, so fixing them is easier and takes less time.

Some good points are:

• Better work and longer life because of the right size and materials

• Extra features like built-in valves or electronics for more control

• Stronger coatings and special materials for hard jobs, like underwater or hot places

• Lower fixing costs because parts are easy to get to and swap

• Quality checks and certificates that show the cylinder will last and be safe

Custom hydraulic cylinders help stop problems from using regular parts that do not fit well. They also stop making things too strong, which wastes money, or too weak, which can break.

Comparing Cylinder Types

Performance

Hydraulic cylinders are strong and can lift heavy things. They use hydraulic fluid that does not squeeze, so they move loads with a lot of power. Double-acting hydraulic cylinders let you control speed and direction better than single-acting ones. Ram cylinders give very high force, so they are good for lifting and pressing jobs. Telescopic cylinders can stretch out far but start small, which is great for dump trucks and other vehicles. Compact welded cylinders fit in tight spots and still give strong force. The table below shows how each type is different:

Hydraulic Cylinder Type	Force Output	Speed and Control	Key Features
Single-Acting	Lower	Limited, one-way	Simple, compact, lower cost
Double-Acting	Higher	Fast, precise, both directions	Push and pull, more control
Ram	Very high	Moderate, one-way	Lifting, pressing, fewer wear parts
Telescopic	High, long stroke	Smooth, controlled extension	Multi-stage, fits in small spaces
Compact Welded	High for size	Efficient in small areas	Durable, space-saving

Note: Hydraulic cylinders are best when you need strong force and careful moves.

Cost

How much a hydraulic cylinder costs depends on its type and features. Single-acting cylinders are cheaper because they are simple. Double-acting and telescopic cylinders cost more since they have extra parts and are harder to make. Ram cylinders are a good deal for heavy lifting because they do not have many moving parts. Compact welded cylinders might cost more at first, but they save money later because they last longer and fit in small spaces. If you want special features, strong materials, or sensors, the price goes up.

Maintenance

Taking care of hydraulic cylinders helps them last longer and work better. You should check them often to keep them safe and stop problems. Here are some things to do:

1. Look at rods, pistons, and bores for damage or wear.

2. Oil the moving parts and change seals if needed.

3. Check and clean the hydraulic fluid and filters.

4. Switch cylinders in busy machines to stop too much wear.

5. Change old parts like seals, pins, and mounts.

Every six months, do a close check and fix safety devices. Once a year, change all seals and fluid to keep cylinders working well. Doing these things stops leaks, keeps parts lined up, and saves money on big repairs.

Choosing the Right Cylinder

Application Needs

Picking the right hydraulic cylinder starts with knowing the job. Different machines need different custom hydraulic cylinder types. Engineers think about a few things before they choose:

• What the cylinder will do, like lift, push, or pull

• How much room there is to put it in

• How much force and pressure it needs

• If it will be in heat, cold, or near chemicals

• How the cylinder will be attached

For example, a construction machine may use a welded rod cylinder for strength. An offshore rig may need special materials to stop rust. Some jobs need long strokes, so telescopic cylinders are best. Other jobs need smart cylinders with sensors for careful control. Picking the right custom hydraulic cylinder types helps machines work safely and well.

Selection Factors

Choosing custom hydraulic cylinder types means looking at important details. Engineers usually follow these steps:

1. Pick the cylinder type that fits the job, like tie-rod for molding or telescopic for small spaces.

2. Figure out the bore size by how much force and pressure is needed.

3. Choose the rod size to hold the load and stroke length.

4. Pick how to mount it, like clevis or flange, to match how it moves.

5. Think about where it will be used and pick materials that last in heat, cold, or rust.

Selection Factor	What It Means
Load Capacity & Force	The weight and power the cylinder must handle
Stroke Length & Space	How far the cylinder must move and the space available
Mounting Options & Stability	The best way to attach the cylinder for safe and steady operation
Environmental Needs	Protection against rust, heat, or cold
Speed & Precision	How fast and accurately the cylinder must move

Talking to manufacturers can help you match these things to the best custom hydraulic cylinder types for each job.

Common Mistakes

People sometimes make mistakes when picking custom hydraulic cylinder types. Some choose a cylinder that is too weak or too strong. Others forget to check if it fits the space or can handle the place it will be used. Using the wrong way to mount it can make it wear out faster. Not thinking about stroke length or pressure can make it work badly.

Tip: Always check what the job needs and ask experts before picking custom hydraulic cylinder types. This helps stop mistakes and keeps machines working well.

Knowing about the types of hydraulic cylinders helps machines work better and last longer. Picking the best design, like smart cylinders with sensors, can help in tough places. Using the right materials stops damage and makes the cylinder last longer. People should think about what they need, like how much weight and space they have. They should talk to experts to make custom solutions that fit their job.

For the best results, companies can talk to manufacturers, use new design tools, and pick strong materials. There are many expert guides and help options for more advice.
