How to Achieve Accurate Sluice Gate Control Using Stainless Steel and Transducer Hydraulic Cylinders

Accurate sluice gate control needs the right mix of stainless steel cylinder technology and transducer systems. Water control places can be tough on equipment. These places need both accuracy and strength. New tests show that transducers give vertical measurement accuracy of about 1 mm. They take readings every 10 seconds. The table below shows important performance details:

Parameter	Description	Values/Details
Sonar transducer precision	Vertical measurement accuracy	~1 mm, sampled every 10 seconds
Hydraulic discharges tested	Flow rates for sediment transport	4300 L/s (low), 5500 L/s (high)
Sediment mass recording frequency	Sediment load measurement interval	Every 1.1 seconds
Mechanical operation of sediment pans	Stainless steel cylinder controls	120° rotation for continuous, accurate collection

Key Takeaways

• Use stainless steel hydraulic cylinders. This stops rust and helps sluice gates last longer in tough water.

• Use transducers for real-time feedback. This gives exact gate positions. It helps control the gate and stops leaks or damage.

• Check and take care of cylinders and sensors often. This helps find problems early. It keeps the system working well.

• Use transducer data to move gates automatically. This saves time and lowers mistakes. It also helps react fast to water changes.

• Pick the right cylinder size and type. Think about the gate’s weight and where it is. This keeps things safe and working well.

Sluice Gate Control Challenges

Harsh Environments

Sluice gates work in tough places. These places have changing water levels and strong currents. There is also a lot of debris in the water. The Poyang Lake barrage project shows sluice gates can change water quality. They can also hurt fish and change how fast water moves. These problems mean we need good planning and strong equipment. In cities like Yangon, rivers rise and rain falls hard. This puts more stress on sluice gates. Floods can make water levels go up fast. It gets hard to keep the gates closed right. Operators must act fast to stop floods and keep things safe.

Tip: Check the gates often and use advanced hydraulic cylinders. This helps the gates work well even when water changes quickly.

Studies show water depth and flow affect sluice gates a lot. Machine learning models help predict these effects. But operators still need strong equipment for tough places. Corrosion, sediment, and wear are always problems. Not many sluice gates have moved from passive to active control. This means upgrades are slow and still happening.

• Hydrodynamic modeling shows forced hydraulic operation helps control water better. But results are not the same everywhere.

• Money and teamwork problems can slow upgrades and repairs. This makes it harder to handle tough water conditions.

Precision Requirements

Accurate sluice gate control must follow strict rules. Groups like ASME, API, and ISO set rules for leak tightness, torque, and pressure drop. These rules make sure gates open and close just right. This stops leaks and keeps water safe. Tests like hydrostatic and pneumatic testing check if gates meet these rules.

Operators must think about changing water when trying to be precise. Passive gates only use water level differences. They have trouble during storms or droughts. Active control systems use real-time feedback from transducers. This lets operators make small changes. This helps stop floods, helps with irrigation, and keeps nature safe.

Note: Using predictive modeling and skilled workers is very important. This is true when weather is extreme.

Stainless Steel Cylinder Benefits

Corrosion Resistance

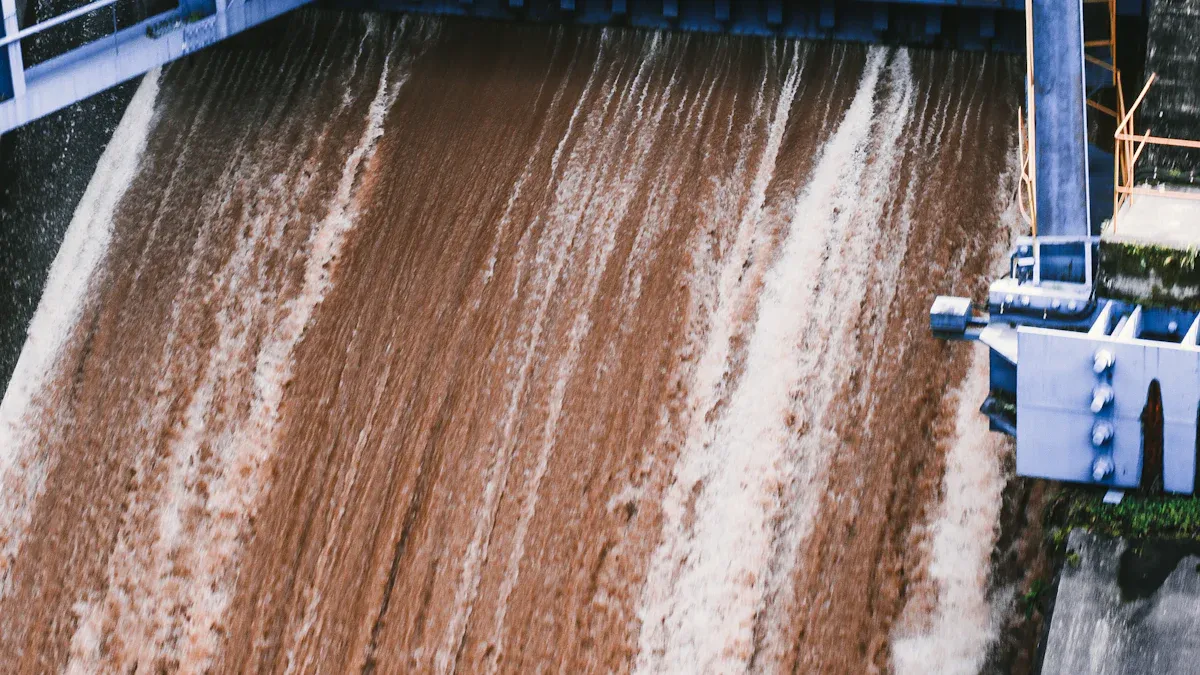

A stainless steel cylinder is great for water control. It does not rust easily. Water, chemicals, and debris can damage metal parts. Many metals rust or break down over time. Stainless steel makes a shield on its surface. This shield keeps water and chemicals out. Operators pick stainless steel cylinders for this reason. These cylinders last longer than regular steel or iron ones.

Engineers use stainless steel cylinders for big jobs. They work well with high pressure. The material stays strong under stress. It does not crack when water moves fast. This makes it good for dams, canals, and flood control. The cylinder keeps working even if water levels change fast.

Tip: Check the stainless steel cylinder often for damage. Finding problems early stops leaks and keeps the gate working.

Makes gate beautiful and looks better

A stainless steel cylinder makes the sluice gate look nice. Its shiny surface gives a modern and clean look. Many operators like this finish. It shows the equipment is cared for. A good-looking gate helps people trust water projects.

The smooth surface is not just for looks. It also makes cleaning easy. Dirt and algae do not stick much to stainless steel. Maintenance teams can clean the cylinder with little work. This keeps the gate looking new for longer.

• Stainless steel cylinders go well with other new gate parts.

• The shiny finish bounces sunlight away. This helps keep the cylinder cool.

• A clean, nice-looking gate is good for inspections or tours.

A stainless steel cylinder is strong, lasts long, and looks good. It works for both engineers and the public. Operators who use these cylinders have fewer problems and do less repair work.

Transducer Precision

Real-Time Position Feedback

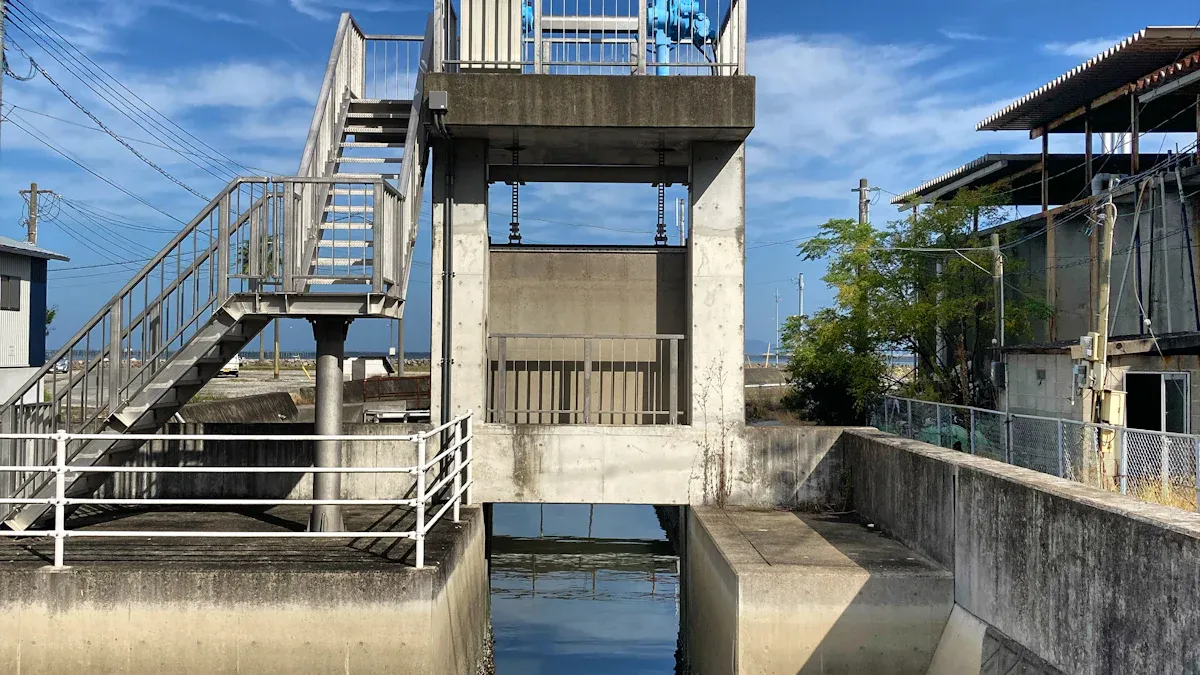

Modern sluice gate systems use advanced transducers for better control. These devices, like contactless in-cylinder linear transducers, measure the cilindro hidráulico’s position. They use both LVDT and potentiometer technologies. This makes them tough and dependable. Operators can count on these sensors in hard places. They work even when it gets very hot, up to +200°C (+392°F), or when pressure is high, up to 500 bar (7,500 psi).

• Small body sizes, like 8mm or 10.1mm, fit in tight spots.

• Analog and CAN SAE J1939 digital outputs help connect to control systems.

Transducers send position data to the control system all the time. This helps operators make small, careful changes to the sluice gate. The system can react fast when water levels or flow rates change. Built-in force measurement systems also help with accuracy. They measure force right on the piston rod. This stops mistakes that can happen with pressure-based systems, especially when loads are heavy.

Specification / Feature	Description / Performance Metric
Absolute Accuracy	±0.3% Full Scale (FS), or 0.6% FS peak-to-peak error
Repeatability / Precision	Below 2 mm peak-to-peak over most of cylinder stroke
Functional Safety Compliance	Meets Performance Level d (DIN EN ISO 13849) and SIL 2 (DIN EN ISO 61508)
Environmental Robustness	Designed for harsh environments with lateral forces and temperature gradients

Tip: Real-time correction algorithms fix errors from oil changes. These changes can come from temperature, pressure, or aging. This keeps measurements correct over time.

Synchronization Features

When a sluice gate uses more than one hydraulic cylinder, keeping them in sync is important. Each cylinder must move together to stop twisting or jamming. Transducer systems give feedback from each cylinder at the same time. The control system uses this to keep all movements matched.

A lab surge test showed why synchronization matters. In this test, engineers used many sensors, like pressure transducers, a load cell, and an ultrasonic sensor. They linked these with special software. This setup let them match flow depth, speed, and pressure at the same time. The data showed how water and sediment moved during a surge. Operators could study the results and change how the gate worked for better safety and efficiency.

• Synchronized transducer data makes sluice gate control more reliable.

• Operators learn more about flow, which helps stop accidents.

Note: Synchronization features protect equipment and make things safer for workers and the environment.

Implementation Steps

Cylinder Selection

Picking the right hydraulic cylinder is the first thing to do. Engineers look at how big the gate is and how heavy it is. They also check how much force is needed to move it. The place where the gate is used matters too. Many times, they pick a stainless steel cylinder because it is strong. It also does not rust easily. Double acting cylinders are good for sluice gates. They can move the gate up and down with control.

Key things to remember when picking a cylinder:

• Measure how big and heavy the gate is.

• Figure out how much force is needed to move it.

• Pick a cylinder with the right size and length.

• Use a stainless steel cylinder if the place is wet or rough.

• Choose a double acting cylinder if you need careful movement.

Tip: Make sure the cylinder works with the control system and meets safety rules.

Installation Process

Installing the hydraulic system the right way keeps it safe. Installers must follow the maker’s steps and use the right tools. They put the cylinder in place, hook up the hydraulic lines, and set up the transducer.

Steps for installation:

1. Look at the spot where the cylinder will go. Make sure it is clean and not broken.

2. Attach the cylinder to the gate frame with the right bolts.

3. Connect the hydraulic hoses and check for leaks.

4. Put in the transducer and link it to the control system.

5. Move the gate to see if it works smoothly.

Installers use pilot operated check valves to keep the gate from falling. Safety valves and backup controls help protect people and equipment. They also make sure all wires are marked and safe.

Note: Always wear safety gear and keep the area tidy when working.

Calibration and Maintenance

Calibration helps the system stay correct. Maintenance makes the cylinder and transducer last longer. Operators test and set the sensors so the gate moves right every time. They also look for leaks, damage, and check fluid levels.

Regular calibration and maintenance jobs:

• Test the hydraulic system to see if it works well.

• Set sensors and switches so they are correct.

• Check the electrical panels and wires.

• Make sure all electrical parts are grounded.

• Test the emergency stop to see if it works.

• Go over operator training and check certifications.

• Write down all checks and repairs.

• Plan future checks based on how much the system is used.

Maintenance Task	Frequency	Purpose
Leak inspection	Weekly	Stop problems before they start
Sensor calibration	Monthly	Keep things working right
Emergency stop test	Quarterly	Make sure it is safe
Operator training review	Annually	Follow safety rules

Doing regular checks and keeping records helps find problems early. This keeps the sluice gate system safe.

Control systems must follow rules like ANSI, ISO, and CE. Engineers use risk checks and software to make sure the system is safe. They build control systems with backup and self-checking parts for extra safety.

Advantages Over Traditional Methods

Reliability and Safety

Modern sluice gate systems use stainless steel cylinders and transducers. These systems work better than old ones. Old systems use steel or iron cylinders. These parts rust fast and break in wet places. Stainless steel does not rust and lasts many years. Transducers give real-time feedback. Operators always know the gate’s position.

Operators can find problems early with these systems. They can fix small issues before they get worse. This lowers the chance of sudden breakdowns. The system can stop the gate if it moves too fast or gets stuck. Emergency stop features and backup controls keep workers and equipment safe.

Tip: Check the system’s safety features during regular maintenance. This keeps the gate safe for everyone.

Key reliability and safety improvements:

• Less downtime from rust or wear

• Early warning for leaks or jams

• Automatic stops for unsafe movements

• Stronger parts that last longer

Feature	Traditional Methods	Modern System (Stainless + Transducer)
Rust Resistance	Low	High
Real-Time Feedback	None	Yes
Emergency Stop	Manual	Automatic
Maintenance Frequency	High	Low

Automation and Efficiency

Automated sluice gate control changes how water flow is managed. In the past, workers opened and closed gates by hand or with simple motors. These ways took more time and caused mistakes. With transducer cylinders, the system moves gates with high precision. Operators can set exact positions using a control panel or remote software.

The system tracks every movement and records data. This helps operators plan better and react faster to changing water levels. Automation means fewer people need to be on-site. The system can check itself and make small changes without help.

• Operators save time with automatic controls.

• The system uses less energy because it moves only when needed.

• Data logs help with planning and upgrades.

Note: Automated systems help meet strict rules for water safety and environmental care.

How to boost efficiency with modern systems:

1. Set up automatic schedules for gate movement.

2. Use data from transducers to adjust flow rates.

3. Train staff to use remote monitoring tools.

Modern sluice gate systems make water control safer, faster, and more reliable than ever before.

Stainless steel cylinders with transducers help sluice gates last longer. They stop rust and damage from happening. Operators can control the gates more accurately. The gates break down less often and work better in rough water. These systems help keep everything running smoothly.

• Get better gate control with real-time feedback.

• Spend less time and money on fixing things.

• Make it safer for workers and equipment.

Tip: Switch to stainless steel cylinders with transducers for reliable and accurate sluice gate control.

FAQ

What makes stainless steel cylinders better for sluice gates?

Stainless steel does not rust or corrode easily. It works well in wet and rough places. Operators pick it because it lasts long and needs fewer fixes. The smooth surface is easy to clean.

How do transducers improve gate control accuracy?

Transducers give real-time updates about the gate’s position. Operators use this information to make small, careful changes. This helps stop leaks and makes sure the gate opens and closes on time.

Can operators automate sluice gate movement with these systems?

Yes. Transducers and control panels can move gates automatically. Operators can set times and watch how things work from far away. Automation means less work by hand and makes the system more dependable.

What maintenance do stainless steel hydraulic cylinders require?

Operators should look for leaks, check if sensors work right, and clean the cylinder often. Doing these checks stops problems and helps the equipment last longer.

Are these systems suitable for large-scale water projects?

Yes. Stainless steel cylinders and transducer systems are good for dams, canals, and flood control. They can handle strong pressure and heavy weight, so they fit big projects well.
