Heat treatment methods for hydraulic cylinder barrels

You rely on heat treatment to improve the performance of hydraulic cylinder barrels. The main methods include:

• Annealing, which softens the material and boosts ductility.

• Normalising, which enhances mechanical properties.

• Quenching and tempering, which hardens steel grades such as CK45 and SAE 4140.

• Stress relieving, which reduces internal stresses in materials like ST 52.3 or E355.

These processes help you achieve better durability, strength, and machinability. Choosing the right method depends on the specific material and the demands of your application.

Key Takeaways

• Heat treatment improves hydraulic cylinder barrels by increasing strength, durability, and machinability.

• Different methods like annealing, normalising, quenching, and tempering offer unique benefits for specific materials and uses.

• Surface treatments such as induction hardening, carburising, and nitriding protect barrels from wear and corrosion.

• Choosing the right heat treatment depends on the barrel’s material, operating environment, and cost considerations.

• Proper heat treatment prevents cracks, warping, and early failure, extending the barrel’s service life.

Role of Heat Treatment

Purpose

You use heat treatment to change the properties of hydraulic cylinder barrels. This process lets you control hardness, strength, and ductility. When you apply heat treatment, you can make the metal softer for machining or harder for wear resistance. You also use it to relieve internal stresses that form during manufacturing. These stresses can cause cracks or warping if left untreated. By choosing the right heat treatment, you prepare the barrel for its working environment and extend its service life.

Note: Heat treatment helps you achieve the right balance between toughness and machinability. You can tailor the process to match the needs of each application.

Performance Impact

Heat treatment has a direct effect on how well your hydraulic cylinder barrels perform. When you treat the barrel, you improve its ability to handle high pressure and repeated use. For example, thermal autofrettage, a special heat treatment, creates compressive stresses at the inner surface of thick-walled barrels. This makes the barrel much stronger and increases its pressure carrying capacity by up to 40% compared to untreated barrels. You also see a boost in fatigue life, which means the barrel lasts longer under heavy loads. Research shows that these improvements are especially clear in barrels made from advanced materials like functionally graded composites. You get safer and more reliable cylinders when you use the right heat treatment method.

• You increase strength and durability.

• You reduce the risk of failure under pressure.

• You improve resistance to wear and fatigue.

Heat Treatment Methods

Annealing

You use annealing to soften the metal in hydraulic cylinder barrels. This process involves heating the barrel to a specific temperature and then cooling it slowly. Annealing helps you improve ductility and reduce hardness. You find it easier to machine the barrel after this treatment. It also helps remove internal stresses that can cause problems during later stages of production. You often choose annealing when you need to shape or cut the barrel before final assembly.

Tip: Annealing works best when you want to prepare the barrel for further processing or welding.

Normalising

Normalising gives you a way to refine the grain structure of the steel. You heat the barrel above its critical temperature and then let it cool in air. This process creates a uniform and fine grain structure. You get improved mechanical properties, such as better strength and toughness. Normalising also helps you achieve consistent quality across different barrels. You often use this method for medium carbon steels, especially when you want to balance strength and machinability.

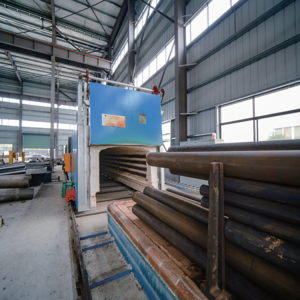

Quenching and Tempering

Quenching and tempering allow you to increase the hardness and strength of hydraulic cylinder barrels. You heat the barrel to a high temperature and then cool it rapidly in water or oil. This step is called quenching. The barrel becomes very hard but also brittle. To fix this, you reheat the barrel to a lower temperature and cool it again. This is tempering. You restore toughness while keeping much of the hardness. You use this method for barrels that must handle high pressure and heavy loads, such as those made from CK45 or SAE 4140 steel.

• Main benefits:

  • High strength

  • Improved wear resistance

  • Longer service life

Stress Relieving

You apply stress relieving to reduce internal stresses that build up during manufacturing. You heat the barrel to a moderate temperature and hold it there for a set time. Then you cool it slowly. This process does not change the hardness much, but it makes the barrel more stable. You prevent warping, cracking, or distortion during later use. Stress relieving is common for barrels made from materials like ST 52.3 or E355, especially after welding or machining.

Induction Hardening

Induction hardening gives you a way to harden only the surface of the barrel. You use an electromagnetic coil to heat the outer layer quickly. Then you cool it rapidly. The surface becomes very hard, but the core stays tough and flexible. You use this method when you need high wear resistance on the outside but want to keep the inside strong and ductile. Induction hardening is ideal for barrels that face heavy abrasion or sliding contact.

Note: Induction hardening is fast and precise. You can target specific areas without affecting the whole barrel.

Carburising

Carburising lets you add carbon to the surface of low-carbon steel barrels. You heat the barrel in a carbon-rich environment. The surface absorbs carbon and becomes hard after quenching. The core remains softer and tough. You use carburising when you want a hard, wear-resistant surface but need the inside to absorb shocks. This method suits barrels that operate in abrasive conditions or need extra surface protection.

Nitriding

Nitriding introduces nitrogen into the surface of the barrel. You heat the barrel in a nitrogen-rich atmosphere. The surface forms a hard nitride layer. You do not need to quench the barrel, so there is less risk of distortion. Nitriding gives you excellent wear and corrosion resistance. You use this method for barrels that must last a long time in harsh environments or need a smooth, hard surface for sealing.

You can see that each heat treatment method offers unique benefits. You should match the method to your material and application needs.

Comparison of Methods

Advantages

Each heat treatment method gives you unique benefits. Annealing makes the metal soft and easy to machine. Normalising improves the grain structure, so you get better strength and toughness. Quenching and tempering give you high hardness and wear resistance, which is important for barrels under heavy loads. Stress relieving helps you avoid warping or cracking after welding or machining. Induction hardening lets you create a hard surface while keeping the core tough. Carburising and nitriding both give you a hard, wear-resistant surface, but nitriding also adds excellent corrosion resistance.

Tip: You can choose a method based on the property you want most, such as ductility, strength, or surface hardness.

Limitations

You must consider the limits of each method. Annealing can lower strength, so you may not use it for high-pressure barrels. Normalising does not give as much hardness as quenching and tempering. Quenching and tempering can cause distortion if not controlled well. Stress relieving does not change hardness, so it may not suit barrels that need extra wear resistance. Induction hardening only affects the surface, so deep wear can expose the softer core. Carburising takes time and works best with low-carbon steels. Nitriding needs special alloys and can be more expensive.

Applications

You should match the method to your needs. Use annealing before machining or welding. Choose normalising for medium carbon steels when you want balanced properties. Select quenching and tempering for barrels that face high pressure or heavy loads. Apply stress relieving after welding or machining to keep the barrel stable. Use induction hardening for barrels that need a hard surface against abrasion. Pick carburising for parts that need a tough core and hard surface. Nitriding works best for barrels in harsh or corrosive environments.

Selection Considerations

Material Type

You must always consider the material of your hydraulic cylinder barrel before choosing a treatment method. Different materials respond in unique ways. For example, steel barrels often benefit from carburising and hardening, which increase surface hardness and wear resistance. Research shows that surface strengthening techniques like burnishing can replace honing for steel, giving you a smoother finish and better resistance to abrasive wear. You may also select coatings such as hard chrome plating or diamond-like carbon (DLC) based on the base material and the demands of your application. If you use the wrong process, especially with steel, you risk cracking or brittleness. Always match the treatment to the material, whether you use low-carbon steel, spheroidal cast iron, or aluminium alloys. This approach helps you avoid failures and ensures the barrel performs well under working conditions.

• Steel barrels: carburising, hardening, burnishing

• Low-carbon steels: carburising, surface coatings

• Cast iron or aluminium: tailored treatments for specific needs

Operating Environment

You need to assess the environment where the cylinder will work. Barrels exposed to corrosive fluids or outdoor conditions require extra surface protection. Nitriding and special coatings can give you excellent resistance to wear and corrosion. If your cylinder faces heavy loads or abrasive contact, induction hardening or carburising may suit your needs. For high-pressure or high-cycle applications, quenching and tempering provide the strength and toughness you need. Always think about temperature swings, moisture, and chemical exposure when you select a method.

Tip: Match the treatment to the environment to extend the life of your hydraulic cylinder barrel.

Cost Factors

You should balance performance with cost. Some methods, like nitriding or advanced coatings, offer great benefits but come at a higher price. Simpler processes, such as annealing or stress relieving, cost less but may not provide enough protection for demanding jobs. Automated cycles can help you control costs by ensuring consistent quality and reducing waste. Surface finishing processes, like burnishing or plating, may add to the initial cost but save you money in the long run by reducing wear and maintenance.

Note: Always weigh the initial investment against the expected service life and maintenance savings.

You have many options when choosing how to improve your hydraulic cylinder barrels. Each method offers unique benefits. Annealing helps with machining. Normalising gives you balanced properties. Quenching and tempering increase strength. Induction hardening and nitriding protect against wear. Always match the method to your material and working environment. Speak with experts before making a decision. Consider both technical needs and costs to get the best results.

FAQ

What is the main purpose of heat treating a hydraulic cylinder barrel?

You use heat treatment to change the metal’s properties. This process helps you improve strength, wear resistance, and machinability. You also use it to relieve internal stresses and prepare the barrel for its working environment.

What heat treatment gives the best surface hardness?

You get the best surface hardness from induction hardening, carburising, or nitriding. These methods create a hard outer layer. You protect the barrel against wear and extend its service life.

What problems can occur if you skip heat treatment?

You may see cracks, warping, or early wear if you skip heat treatment. The barrel might not handle high pressure or heavy loads. You risk failure and shorter service life.

What materials benefit most from heat treatment?

You see the most benefit in steel barrels. Low-carbon steels, medium-carbon steels, and alloy steels respond well. You can also treat some cast irons and aluminium alloys, but you must choose the right method.

What is the difference between carburising and nitriding?

You use carburising to add carbon to the surface. You use nitriding to add nitrogen. Both methods harden the surface, but nitriding also improves corrosion resistance. You choose based on your barrel’s needs.
